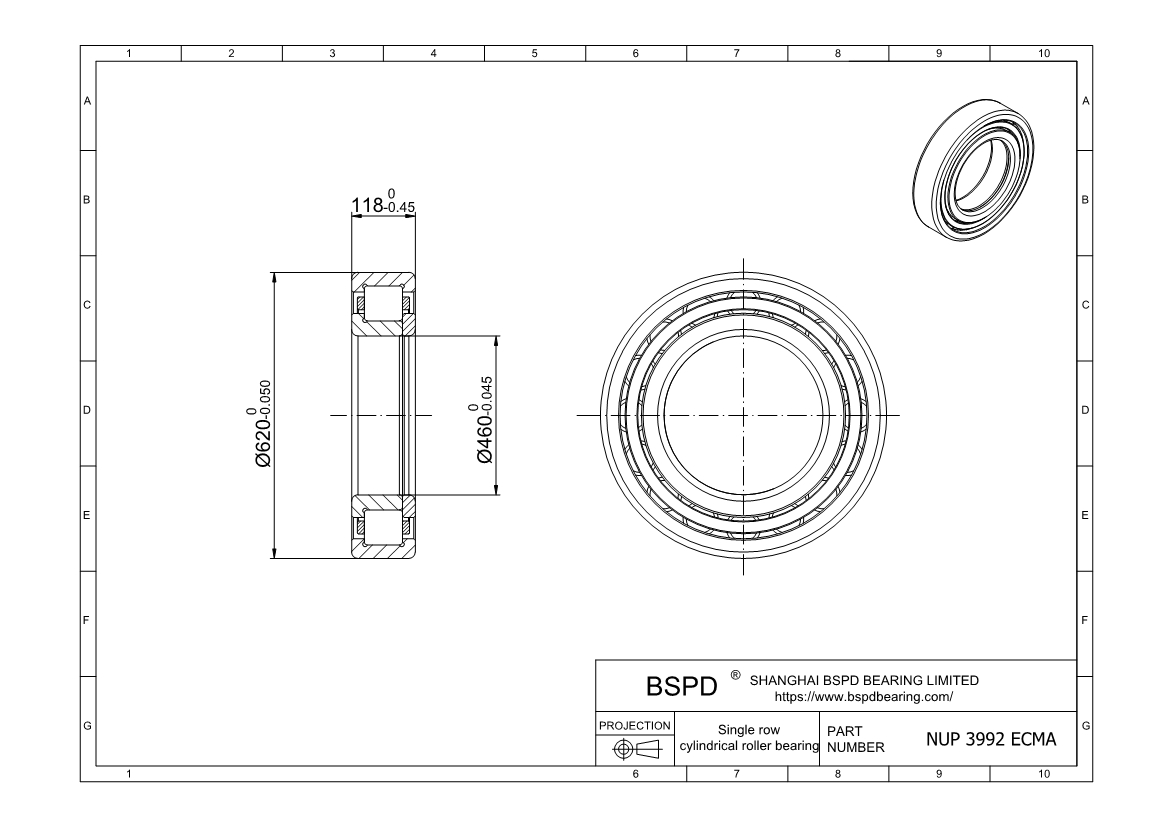

NUP 3992 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 460 mm； Outer Diameter: 620 mm； Width (Thickness): 118 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUP 3992 ECMA |
| Bore diameter | 460 mm |
| Outside diameter | 620 mm |
| Width | 118 mm |
| Basic dynamic load rating | 2050 kN |
| Basic static load rating | 4550 kN |
| Fatigue load limit | 375 kN |
| Reference speed | 850 r/min |
| Limiting speed | 1300 r/min |
| Mass | 112 kg |
| Shoulder diameter of inner ring | 515 mm |
| Shoulder diameter of outer ring | 571 mm |
| Raceway diameter | 501 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NUP 3992 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
