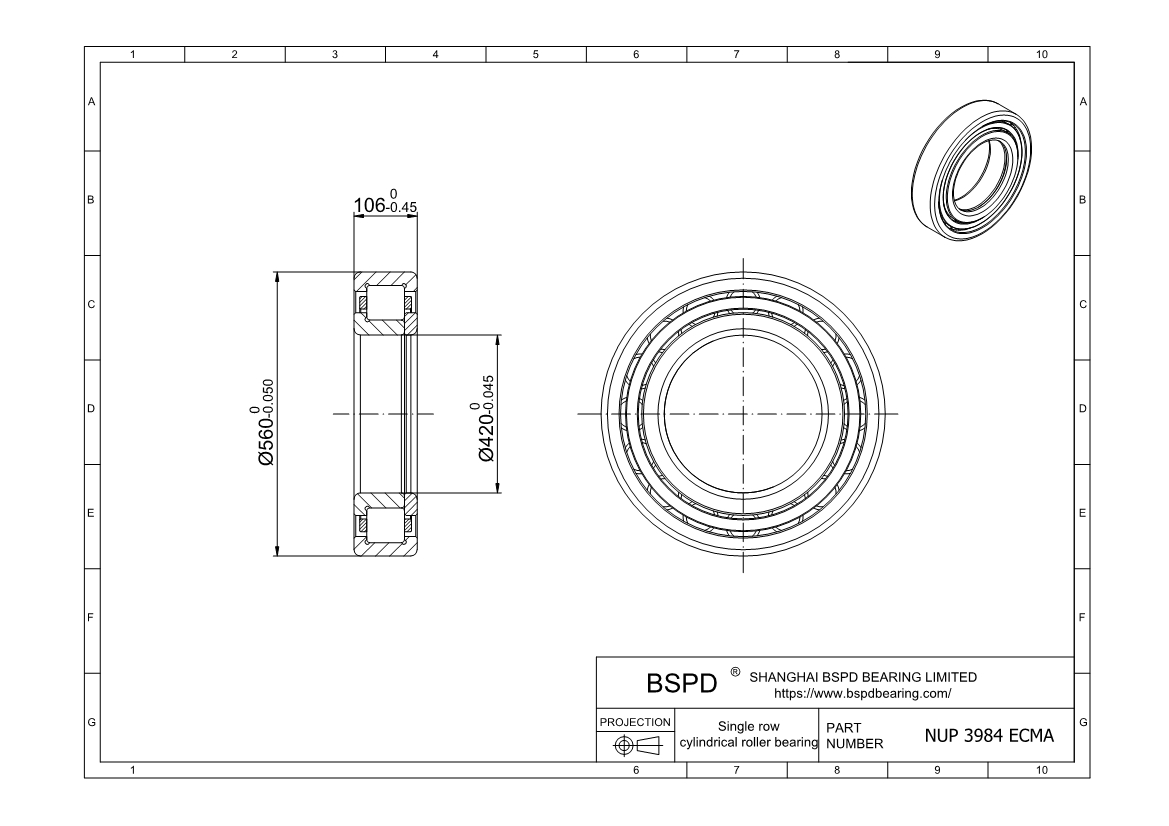

NUP 3984 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 420 mm； Outer Diameter: 560 mm； Width (Thickness): 106 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUP 3984 ECMA |
| Bore diameter | 420 mm |
| Outside diameter | 560 mm |
| Width | 106 mm |
| Basic dynamic load rating | 1680 kN |
| Basic static load rating | 3650 kN |
| Fatigue load limit | 310 kN |
| Reference speed | 950 r/min |
| Limiting speed | 1500 r/min |
| Mass | 79.5 kg |
| Shoulder diameter of inner ring | 468 mm |
| Shoulder diameter of outer ring | 518 mm |
| Raceway diameter | 455 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NUP 3984 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
