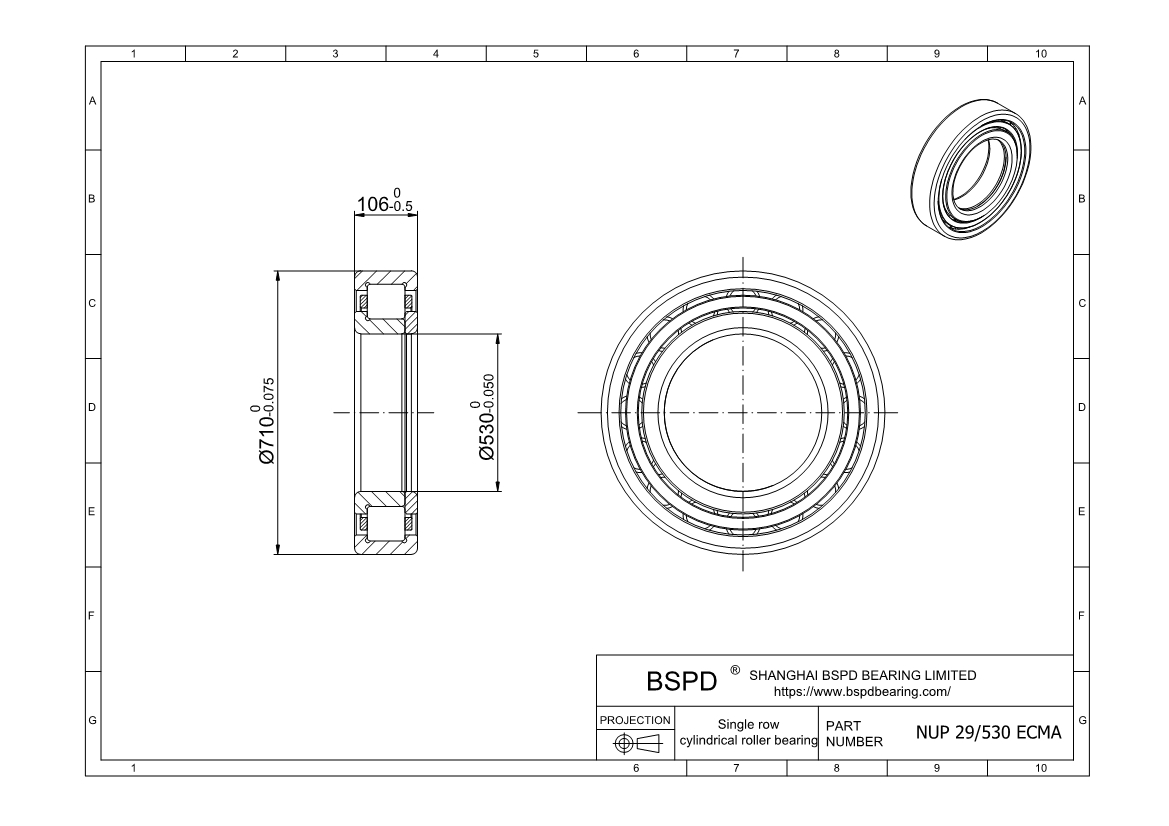

NUP 29/530 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 530 mm； Outer Diameter: 710 mm； Width (Thickness): 106 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUP 29/530 ECMA |
| Bore diameter | 530 mm |
| Outside diameter | 710 mm |
| Width | 106 mm |
| Basic dynamic load rating | 2380 kN |
| Basic static load rating | 5000 kN |
| Fatigue load limit | 390 kN |
| Reference speed | 850 r/min |
| Limiting speed | 1100 r/min |
| Mass | 130 kg |
| Shoulder diameter of inner ring | 590 mm |
| Shoulder diameter of outer ring | 656 mm |
| Raceway diameter | 573 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NUP 29/530 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
