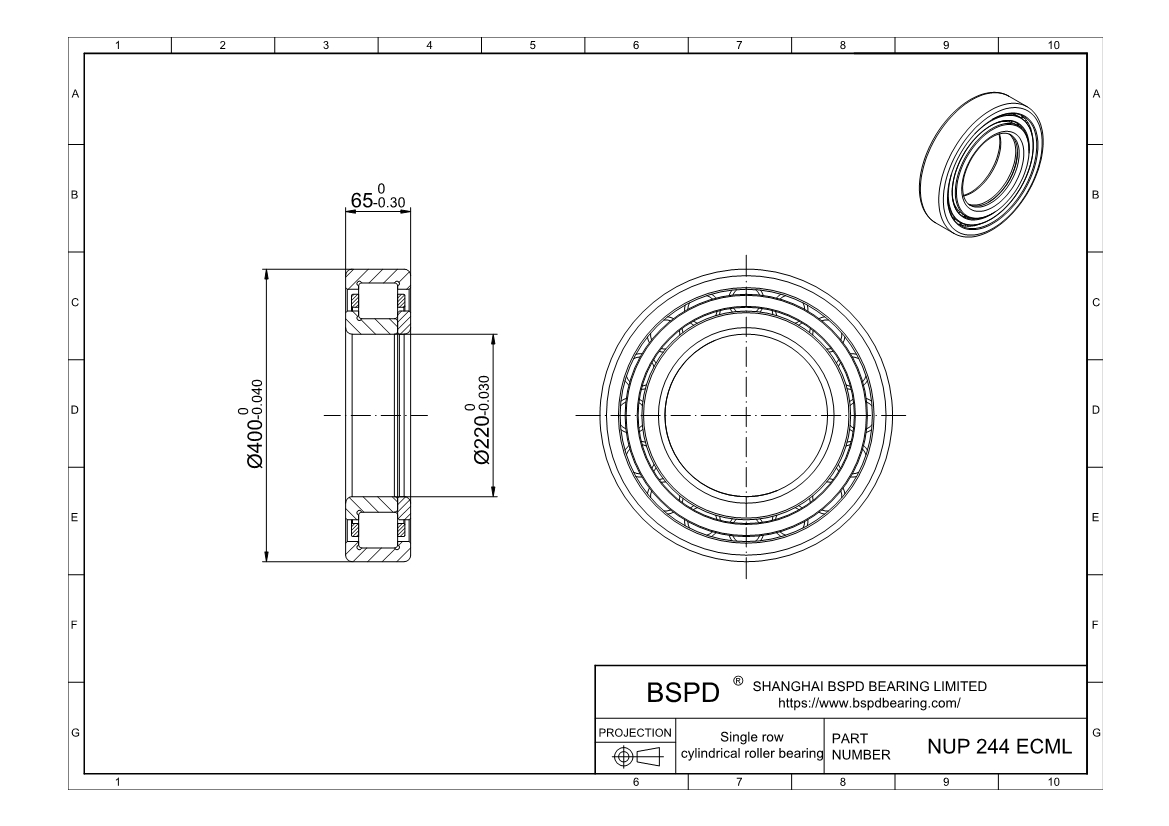

NUP 244 ECML
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 220 mm； Outer Diameter: 400 mm； Width (Thickness): 65 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUP 244 ECML |
| Bore diameter | 220 mm |
| Outside diameter | 400 mm |
| Width | 65 mm |
| Basic dynamic load rating | 1060 kN |
| Basic static load rating | 1290 kN |
| Fatigue load limit | 125 kN |
| Reference speed | 1700 r/min |
| Limiting speed | 3000 r/min |
| Mass | 37.5 kg |
| Shoulder diameter of inner ring | 284 mm |
| Shoulder diameter of outer ring | 343.7 mm |
| Raceway diameter | 268 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NUP 244 ECML ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
