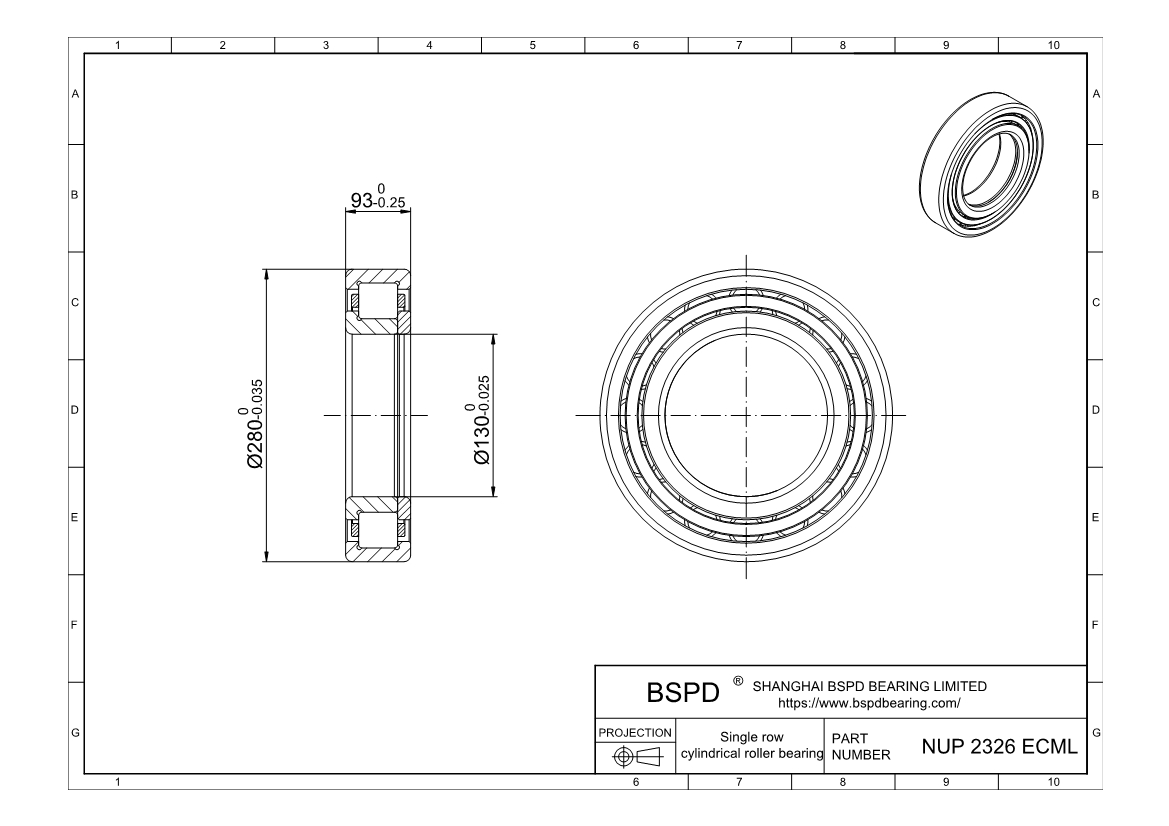

NUP 2326 ECML
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 130 mm； Outer Diameter: 280 mm； Width (Thickness): 93 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUP 2326 ECML |
| Bore diameter | 130 mm |
| Outside diameter | 280 mm |
| Width | 93 mm |
| Basic dynamic load rating | 1060 kN |
| Basic static load rating | 1250 kN |
| Fatigue load limit | 137 kN |
| Reference speed | 2400 r/min |
| Limiting speed | 4500 r/min |
| Mass | 29.5 kg |
| Shoulder diameter of inner ring | 181 mm |
| Shoulder diameter of outer ring | 235.2 mm |
| Raceway diameter | 167 mm |
Print PDF
Request a 3D CAD Model
