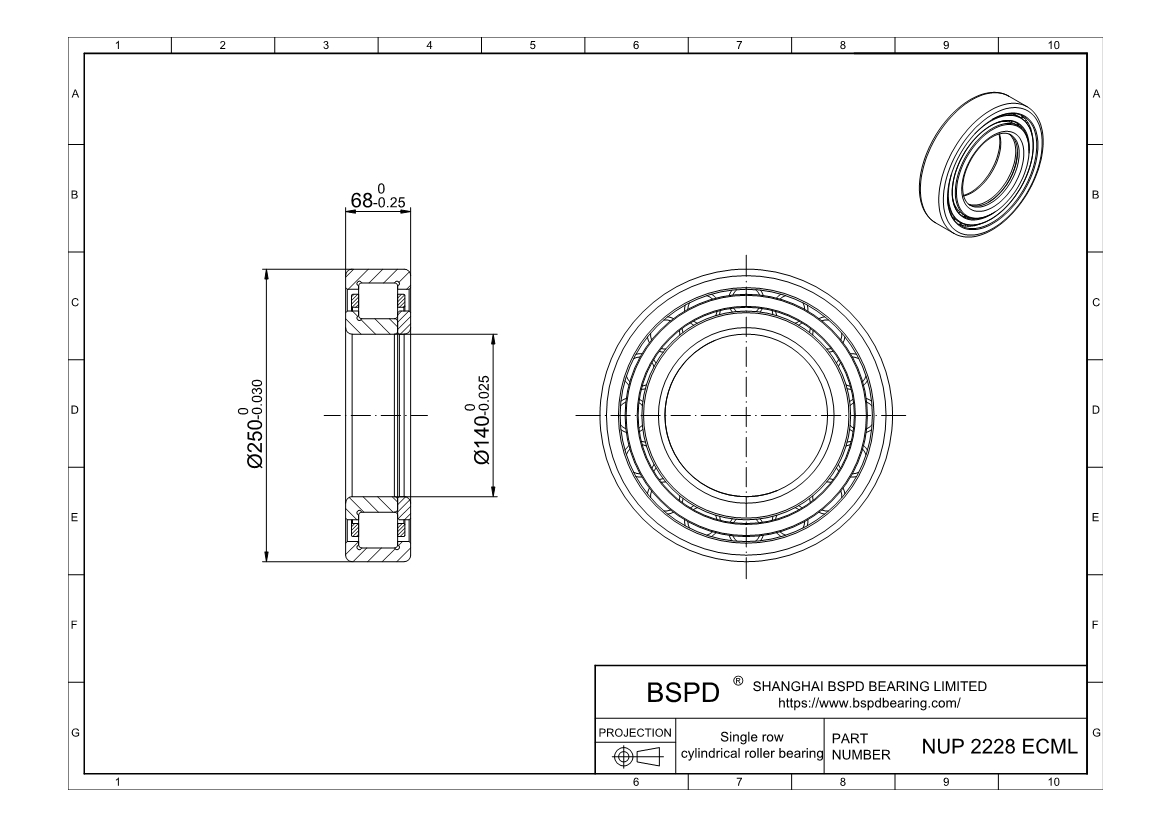

NUP 2228 ECML
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 140 mm； Outer Diameter: 250 mm； Width (Thickness): 68 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUP 2228 ECML |
| Bore diameter | 140 mm |
| Outside diameter | 250 mm |
| Width | 68 mm |
| Basic dynamic load rating | 655 kN |
| Basic static load rating | 830 kN |
| Fatigue load limit | 93 kN |
| Reference speed | 2800 r/min |
| Limiting speed | 4800 r/min |
| Mass | 15.5 kg |
| Shoulder diameter of inner ring | 179 mm |
| Shoulder diameter of outer ring | 216.7 mm |
| Raceway diameter | 169 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NUP 2228 ECML ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
