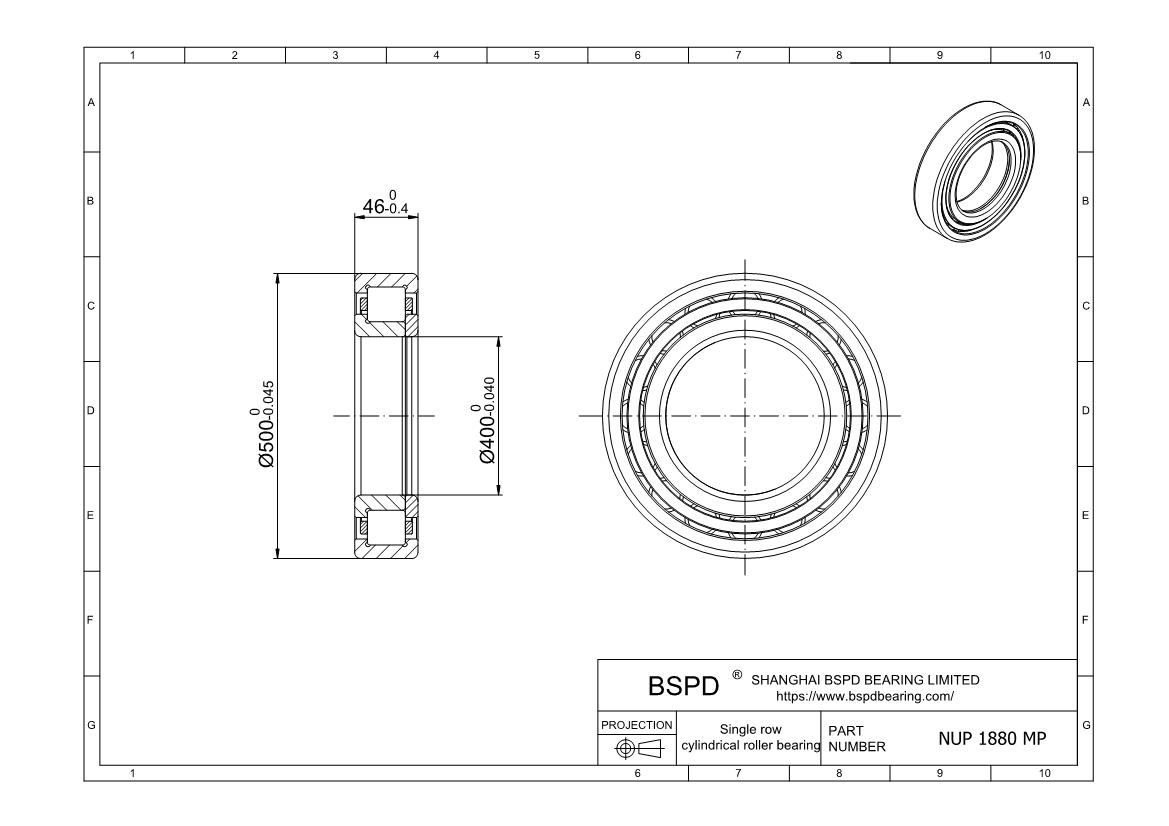

NUP 1880 MP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 400 mm； Outer Diameter: 500 mm； Width (Thickness): 46 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUP 1880 MP |
| Bore diameter | 400 mm |
| Outside diameter | 500 mm |
| Width | 46 mm |
| Basic dynamic load rating | 572 kN |
| Basic static load rating | 1180 kN |
| Fatigue load limit | 96.5 kN |
| Reference speed | 1300 r/min |
| Limiting speed | 1900 r/min |
| Mass | 22.5 kg |
| Shoulder diameter of inner ring | 432 mm |
| Shoulder diameter of outer ring | 464 mm |
| Raceway diameter | 423 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NUP 1880 MP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
