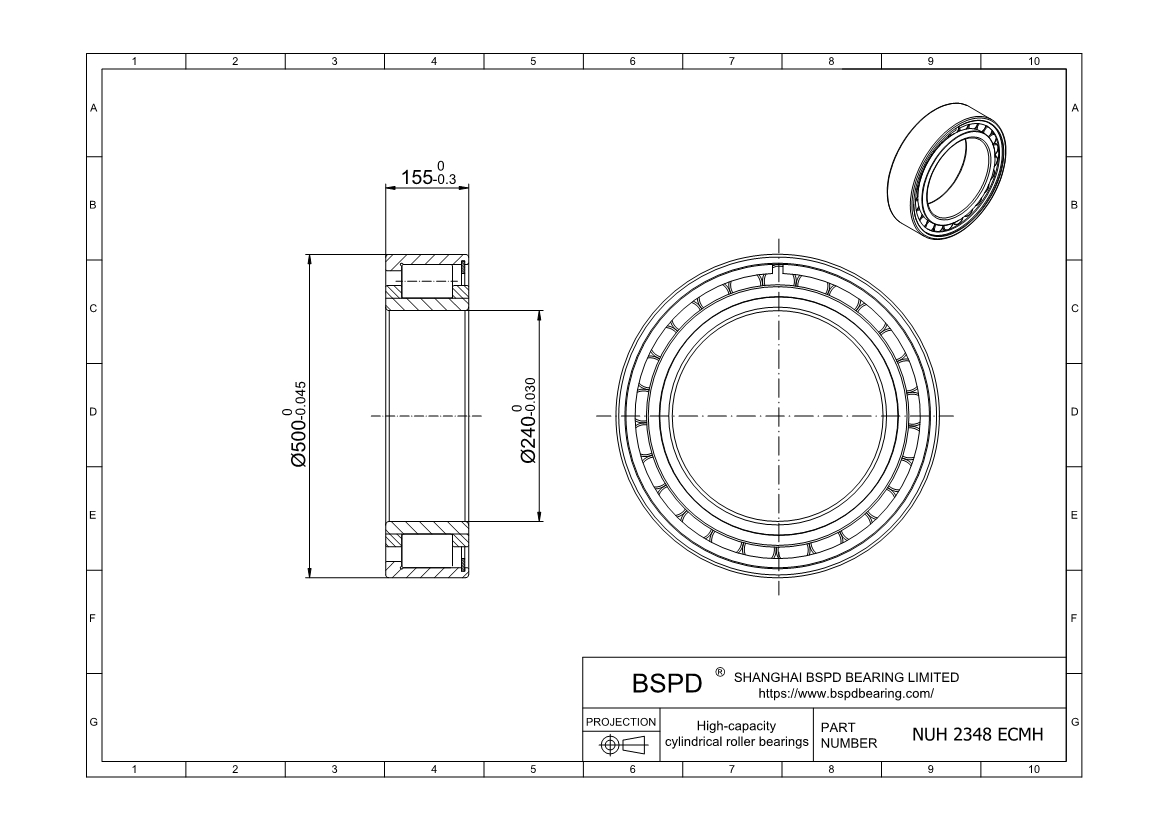

NUH 2348 ECMH
Single row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 240 mm； Outer Diameter: 500 mm； Width (Thickness): 155 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUH 2348 ECMH |
| Bore diameter | 240 mm |
| Outside diameter | 500 mm |
| Width | 155 mm |
| Basic dynamic load rating | 2750 kN |
| Basic static load rating | 4000 kN |
| Fatigue load limit | 345 kN |
| Reference speed | 1200 r/min |
| Limiting speed | 1500 r/min |
| Mass | 143 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 426 mm |
| Raceway diameter | 299 mm |
Print PDF
Request a 3D CAD Model
