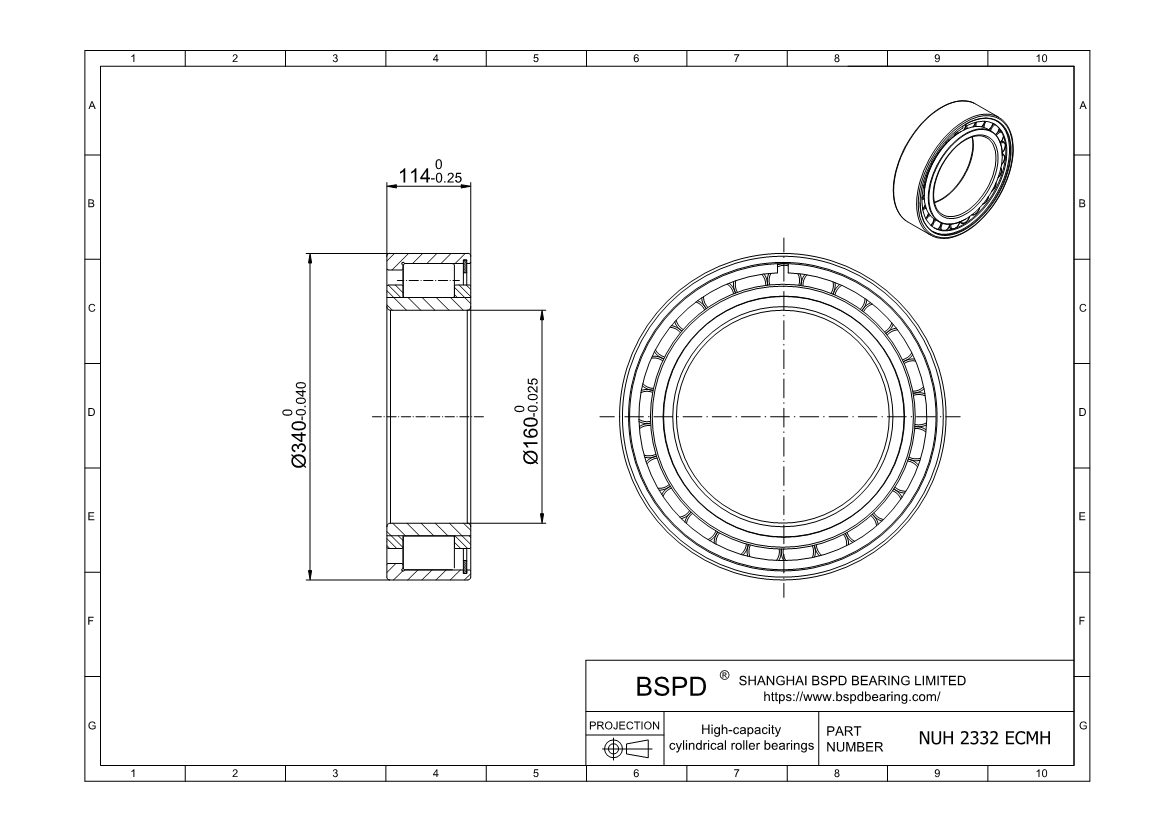

NUH 2332 ECMH
Single row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 160 mm； Outer Diameter: 340 mm； Width (Thickness): 114 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUH 2332 ECMH |
| Bore diameter | 160 mm |
| Outside diameter | 340 mm |
| Width | 114 mm |
| Basic dynamic load rating | 1400 kN |
| Basic static load rating | 2000 kN |
| Fatigue load limit | 196 kN |
| Reference speed | 1800 r/min |
| Limiting speed | 2400 r/min |
| Mass | 50.5 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 285 mm |
| Raceway diameter | 204 mm |
Print PDF
Request a 3D CAD Model
