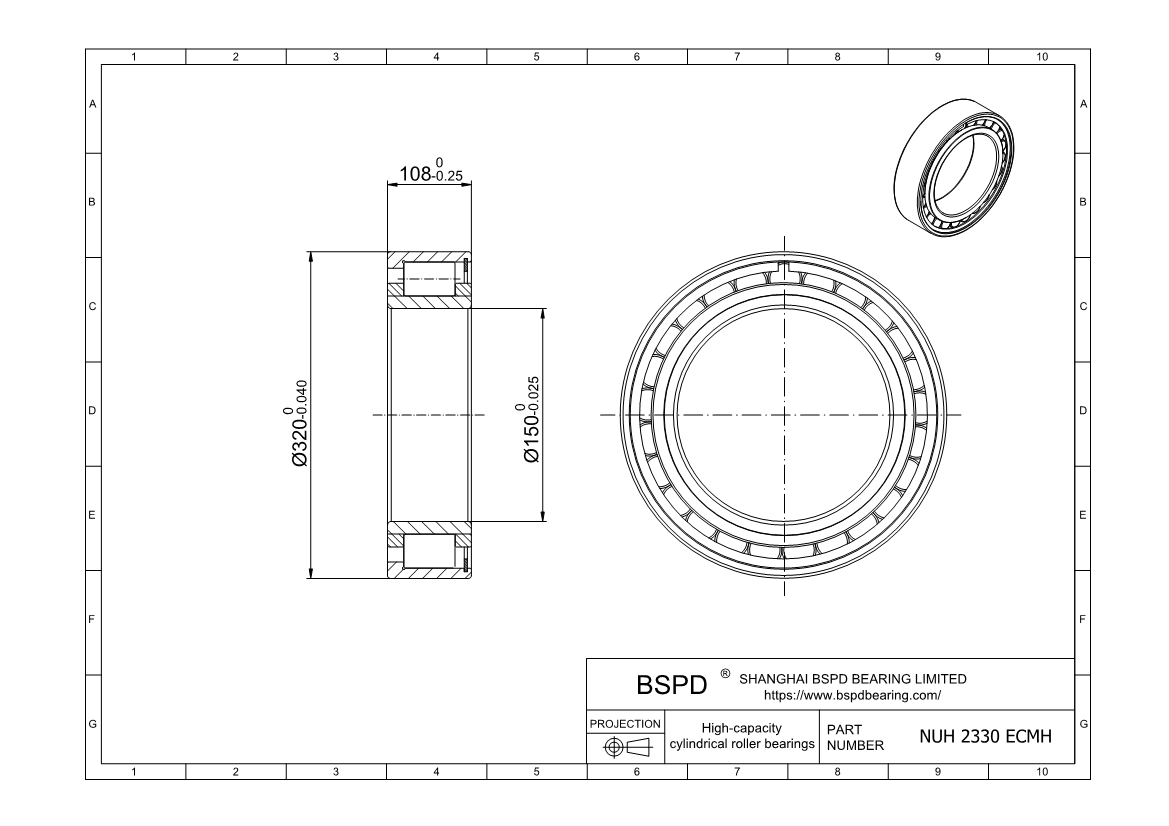

NUH 2330 ECMH
Single row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 320 mm； Width (Thickness): 108 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUH 2330 ECMH |
| Bore diameter | 150 mm |
| Outside diameter | 320 mm |
| Width | 108 mm |
| Basic dynamic load rating | 1430 kN |
| Basic static load rating | 1760 kN |
| Fatigue load limit | 183 kN |
| Reference speed | 2200 r/min |
| Limiting speed | 2600 r/min |
| Mass | 42 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 285 mm |
| Raceway diameter | 193 mm |
Print PDF
Request a 3D CAD Model
