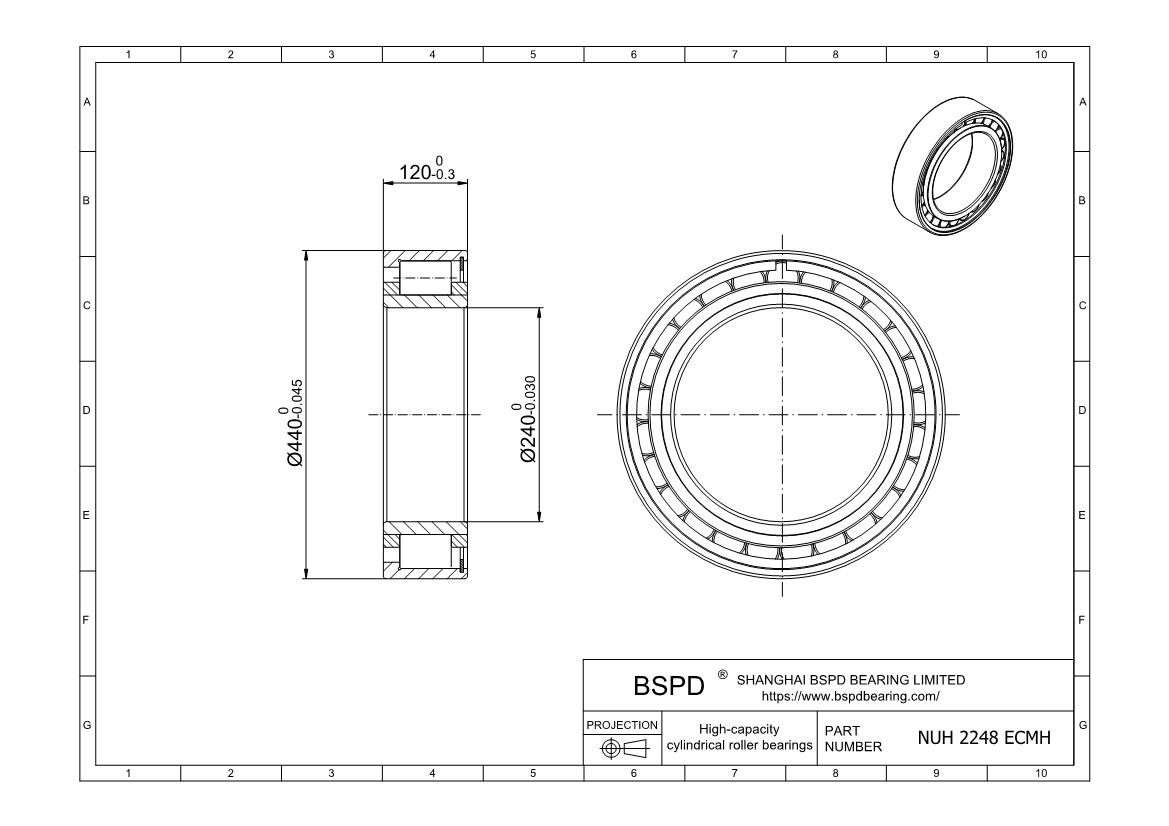

NUH 2248 ECMH
Single row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 240 mm； Outer Diameter: 440 mm； Width (Thickness): 120 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUH 2248 ECMH |
| Bore diameter | 240 mm |
| Outside diameter | 440 mm |
| Width | 120 mm |
| Basic dynamic load rating | 1980 kN |
| Basic static load rating | 3050 kN |
| Fatigue load limit | 275 kN |
| Reference speed | 1400 r/min |
| Limiting speed | 1700 r/min |
| Mass | 80 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 312 mm |
| Raceway diameter | 287 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NUH 2248 ECMH ? Single row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
