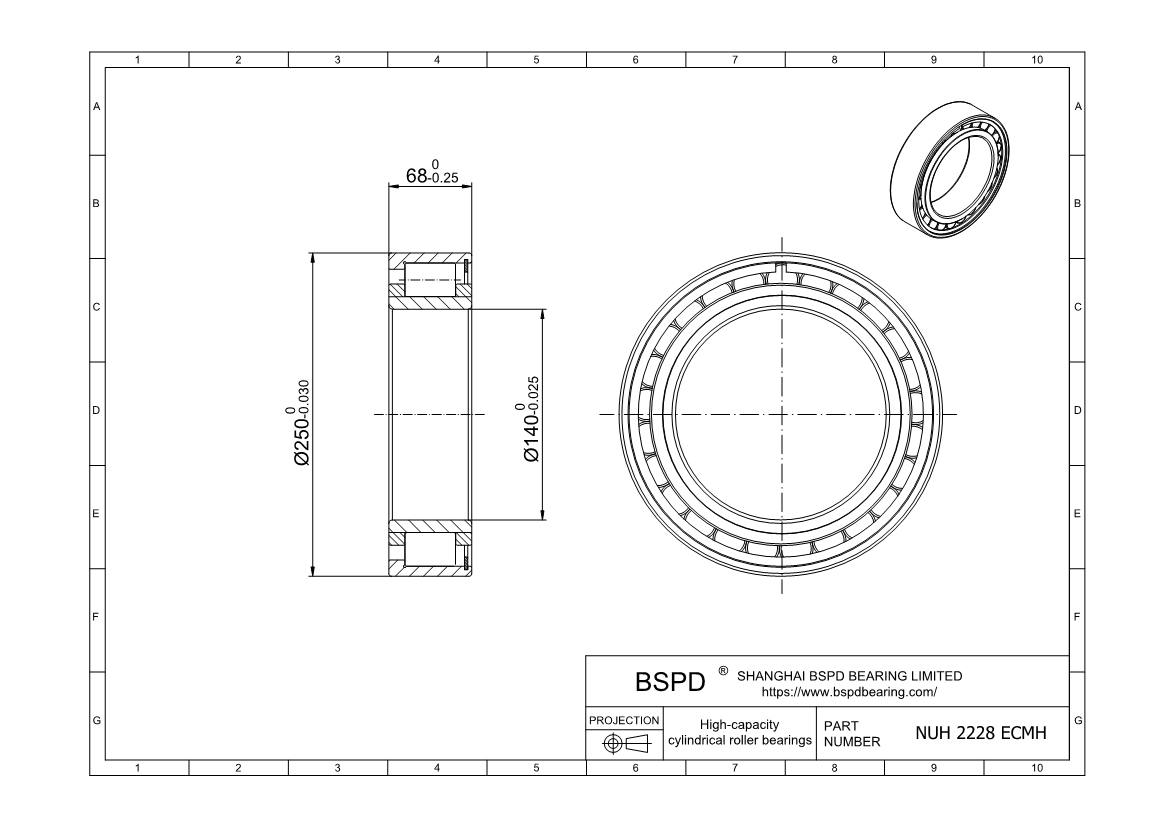

NUH 2228 ECMH
Single row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 140 mm； Outer Diameter: 250 mm； Width (Thickness): 68 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUH 2228 ECMH |
| Bore diameter | 140 mm |
| Outside diameter | 250 mm |
| Width | 68 mm |
| Basic dynamic load rating | 680 kN |
| Basic static load rating | 880 kN |
| Fatigue load limit | 96.5 kN |
| Reference speed | 2800 r/min |
| Limiting speed | 3200 r/min |
| Mass | 14.5 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 216 mm |
| Raceway diameter | 169 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NUH 2228 ECMH ? Single row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
