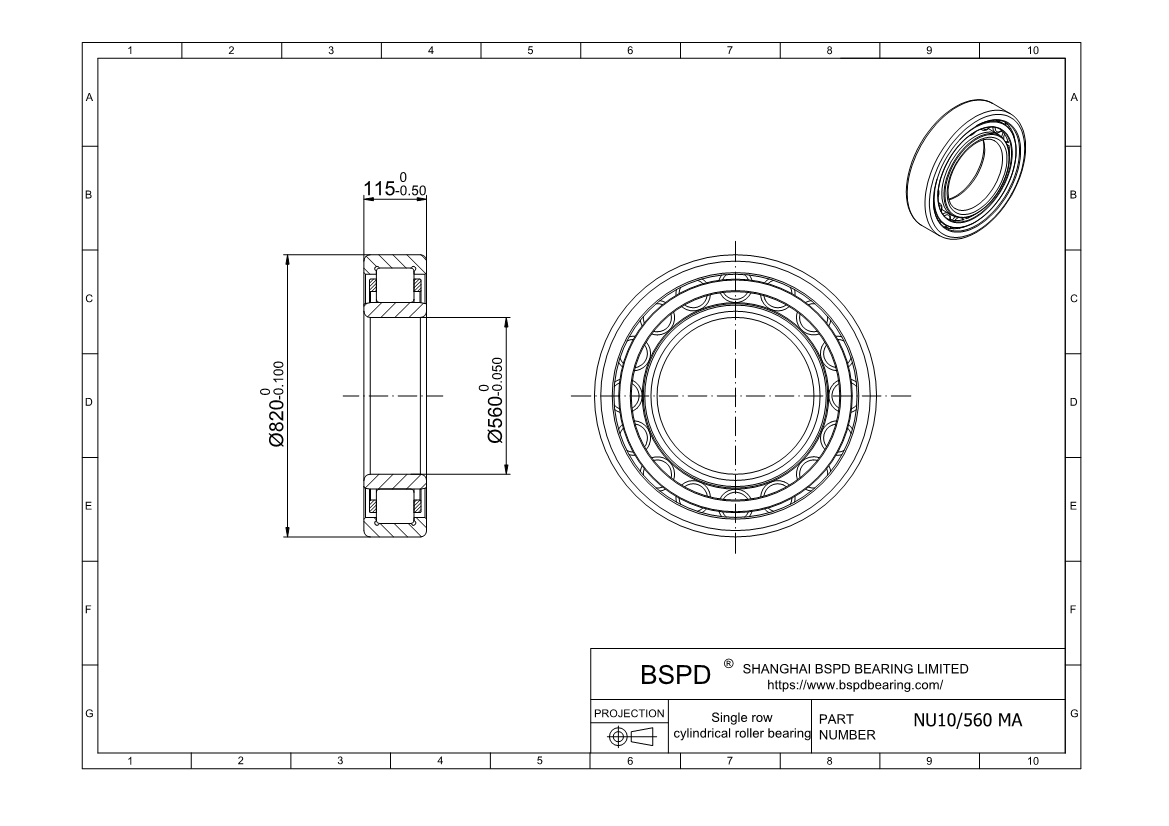

NU10/560 MA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 560 mm； Outer Diameter: 820 mm； Width (Thickness): 115 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU10/560 MA |
| Bore diameter | 560 mm |
| Outside diameter | 820 mm |
| Width | 115 mm |
| Basic dynamic load rating | 2330 kN |
| Basic static load rating | 4250 kN |
| Fatigue load limit | 310 kN |
| Reference speed | 750 r/min |
| Limiting speed | 1000 r/min |
| Mass | 210 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 726 mm |
| Raceway diameter | 625 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU10/560 MA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
