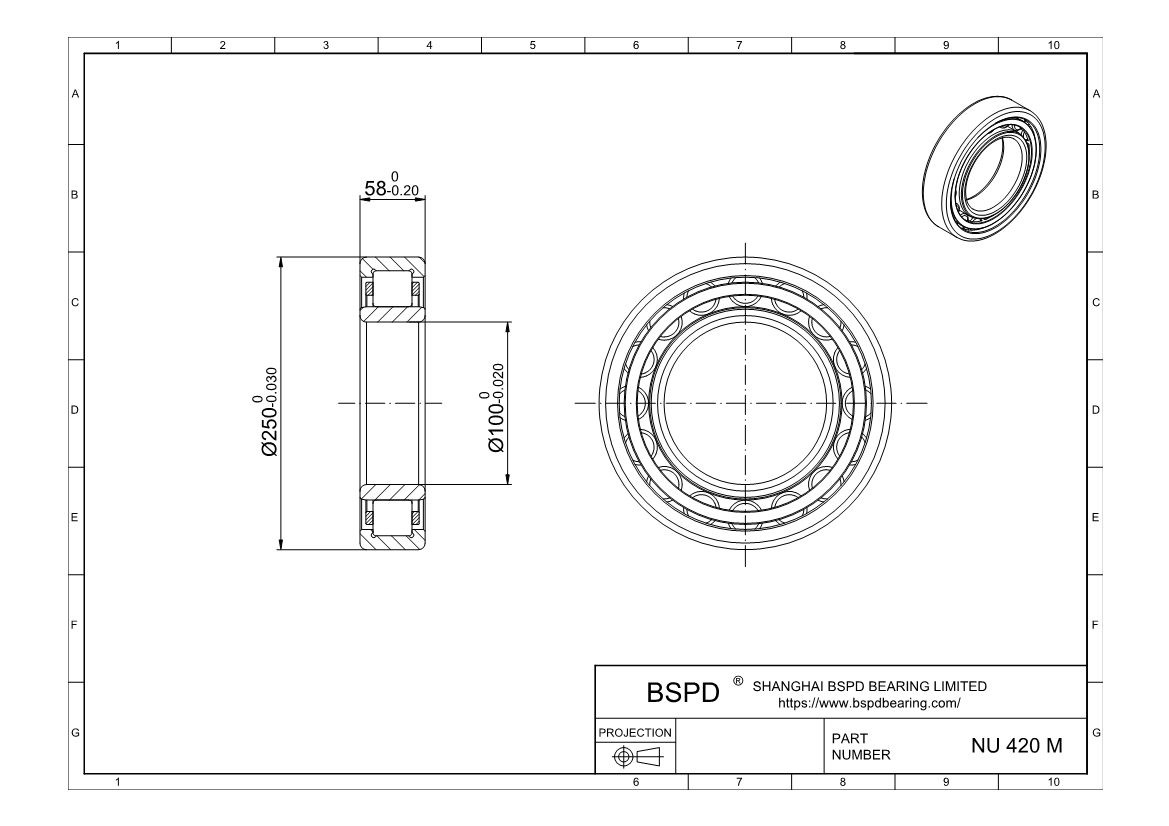

NU 420 M
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 100 mm； Outer Diameter: 250 mm； Width (Thickness): 58 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 420 M |
| Bore diameter | 100 mm |
| Outside diameter | 250 mm |
| Width | 58 mm |
| Basic dynamic load rating | 457 kN |
| Basic static load rating | 520 kN |
| Fatigue load limit | 58.5 kN |
| Reference speed | 3000 r/min |
| Limiting speed | 3600 r/min |
| Mass | 15.5 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 197.45 mm |
| Raceway diameter | 139 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 420 M ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
