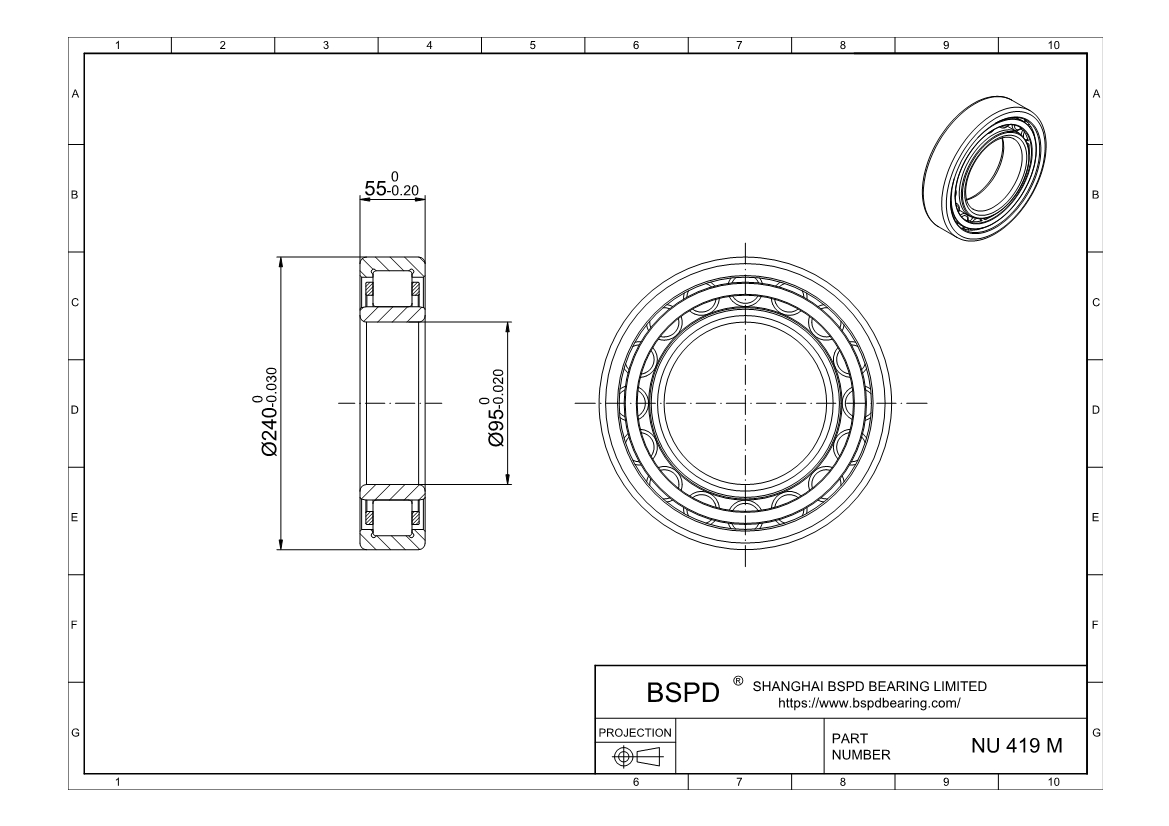

NU 419 M
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 95 mm； Outer Diameter: 240 mm； Width (Thickness): 55 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 419 M |
| Bore diameter | 95 mm |
| Outside diameter | 240 mm |
| Width | 55 mm |
| Basic dynamic load rating | 413 kN |
| Basic static load rating | 455 kN |
| Fatigue load limit | 52 kN |
| Reference speed | 3200 r/min |
| Limiting speed | 3600 r/min |
| Mass | 13.5 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 188 mm |
| Raceway diameter | 133.5 mm |
Print PDF
Request a 3D CAD Model
