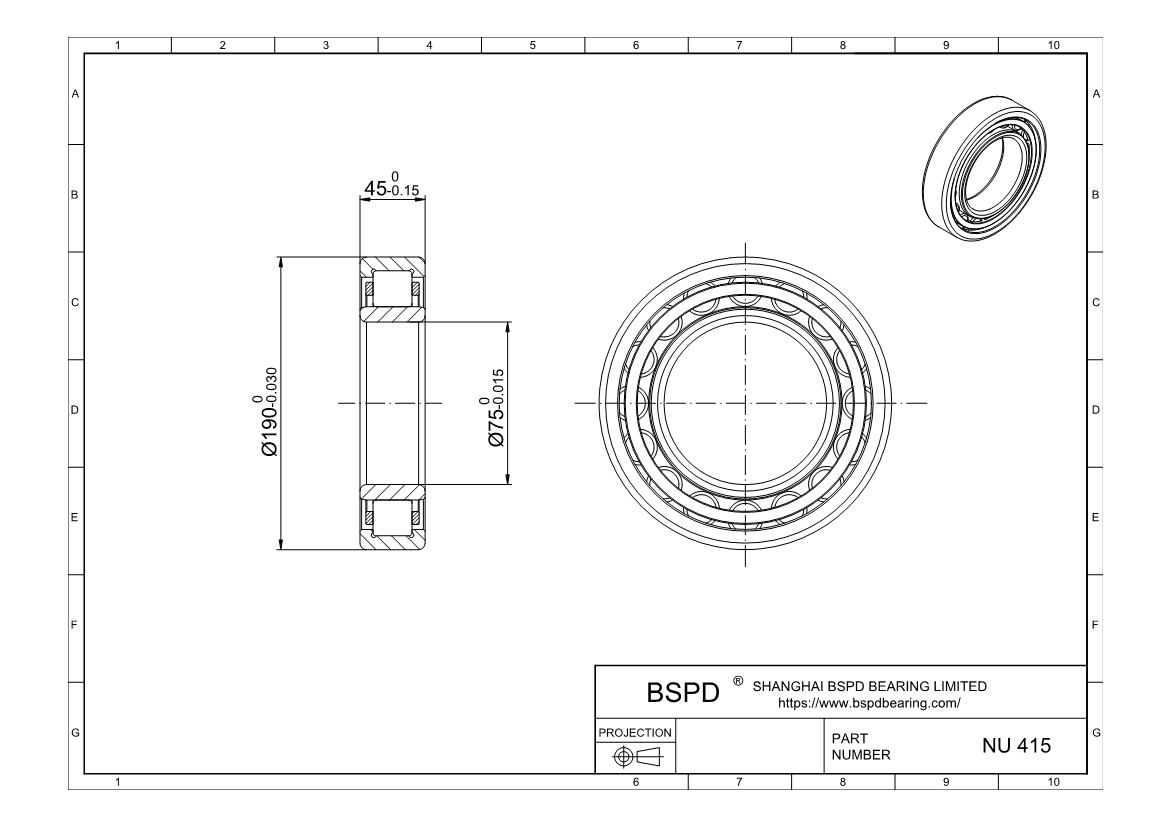

NU 415
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 75 mm； Outer Diameter: 190 mm； Width (Thickness): 45 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 415 |
| Bore diameter | 75 mm |
| Outside diameter | 190 mm |
| Width | 45 mm |
| Basic dynamic load rating | 264 kN |
| Basic static load rating | 280 kN |
| Fatigue load limit | 34 kN |
| Reference speed | 4000 r/min |
| Limiting speed | 4800 r/min |
| Mass | 6.2 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 149.1 mm |
| Raceway diameter | 104.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 415 ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
