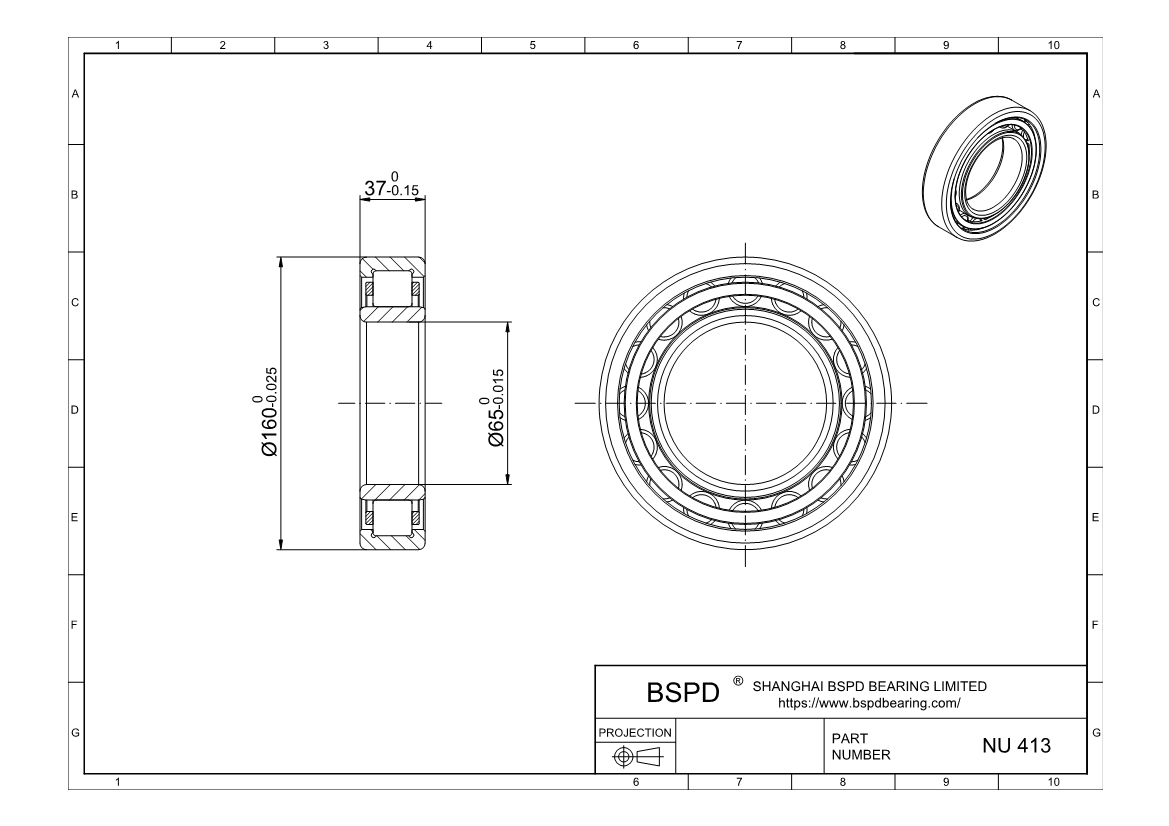

NU 413
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 65 mm； Outer Diameter: 160 mm； Width (Thickness): 37 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 413 |
| Bore diameter | 65 mm |
| Outside diameter | 160 mm |
| Width | 37 mm |
| Basic dynamic load rating | 183 kN |
| Basic static load rating | 190 kN |
| Fatigue load limit | 24 kN |
| Reference speed | 4800 r/min |
| Limiting speed | 5600 r/min |
| Mass | 3.55 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 126.85 mm |
| Raceway diameter | 89.3 mm |
Print PDF
Request a 3D CAD Model
