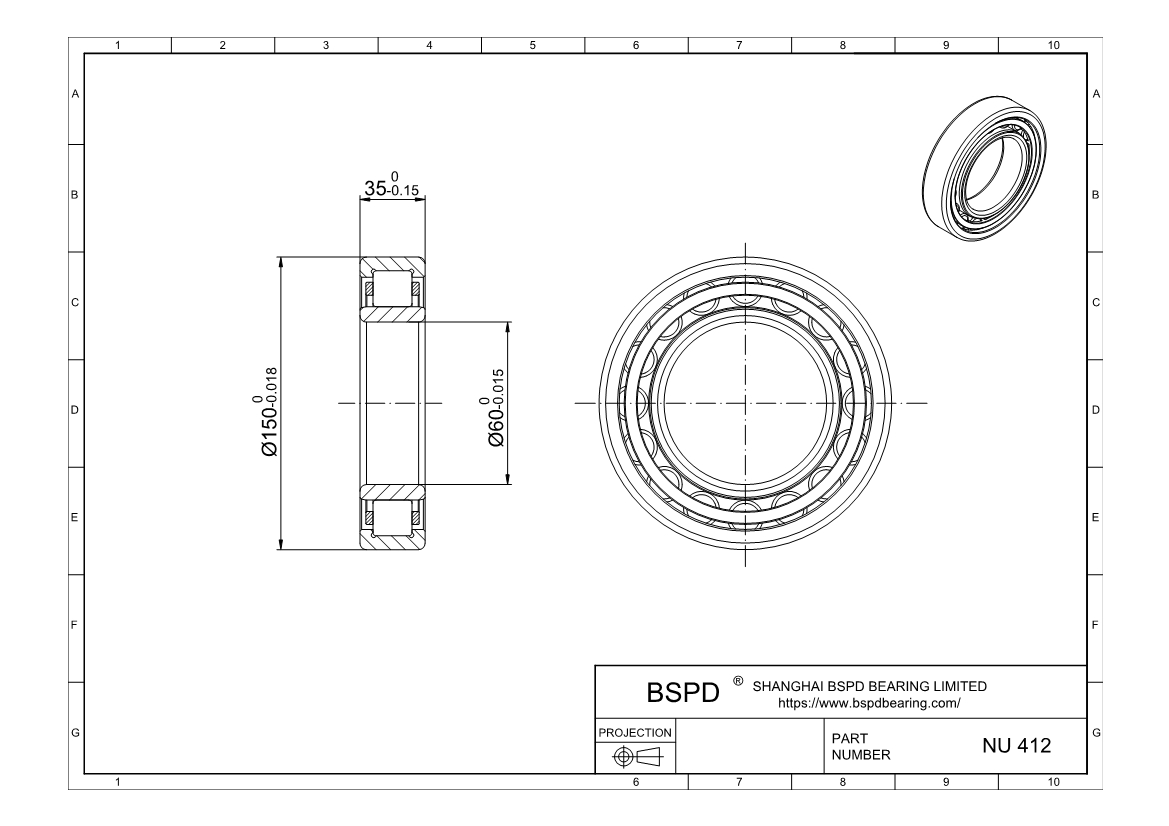

NU 412
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 60 mm； Outer Diameter: 150 mm； Width (Thickness): 35 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 412 |
| Bore diameter | 60 mm |
| Outside diameter | 150 mm |
| Width | 35 mm |
| Basic dynamic load rating | 168 kN |
| Basic static load rating | 173 kN |
| Fatigue load limit | 22 kN |
| Reference speed | 5000 r/min |
| Limiting speed | 6000 r/min |
| Mass | 3 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 118.5 mm |
| Raceway diameter | 83 mm |
Print PDF
Request a 3D CAD Model
