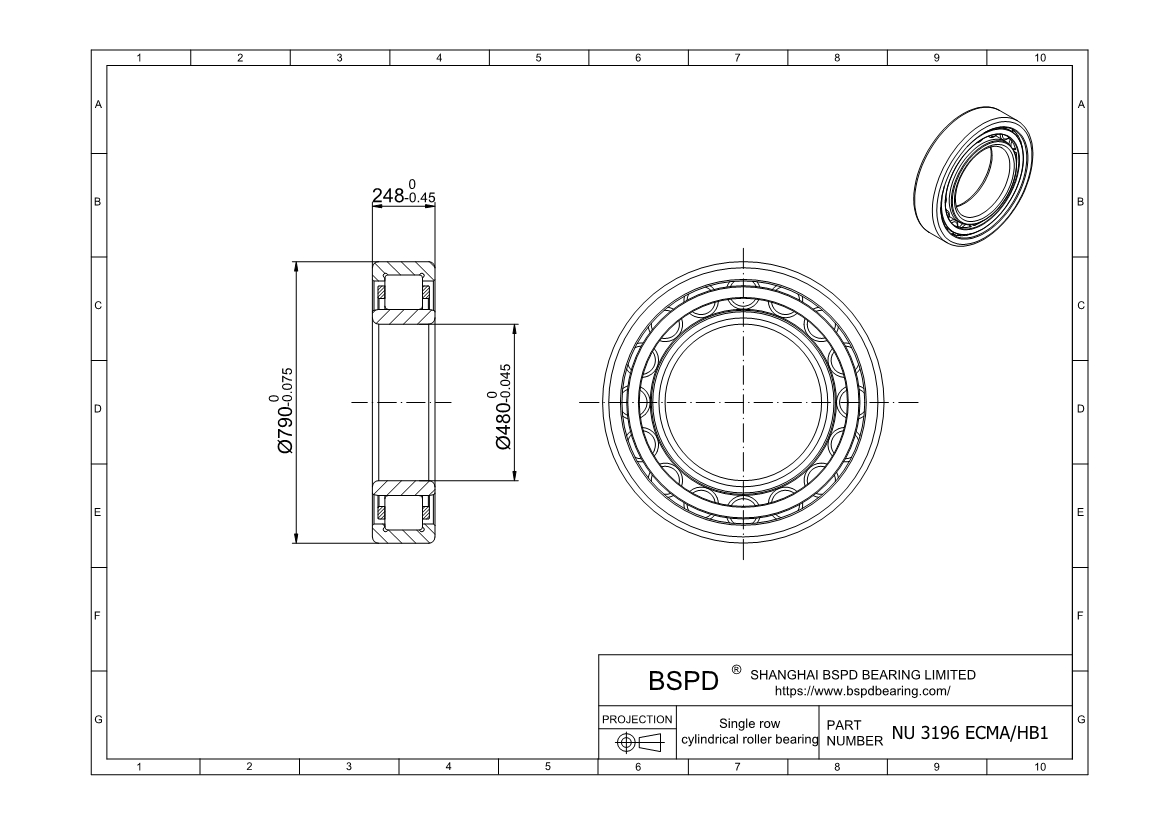

NU 3196 ECMA/HB1
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 480 mm； Outer Diameter: 790 mm； Width (Thickness): 248 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 3196 ECMA/HB1 |
| Bore diameter | 480 mm |
| Outside diameter | 790 mm |
| Width | 248 mm |
| Basic dynamic load rating | 5940 kN |
| Basic static load rating | 10800 kN |
| Fatigue load limit | 800 kN |
| Reference speed | 630 r/min |
| Limiting speed | 1100 r/min |
| Mass | 507 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 699 mm |
| Raceway diameter | 547 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 3196 ECMA/HB1 ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
