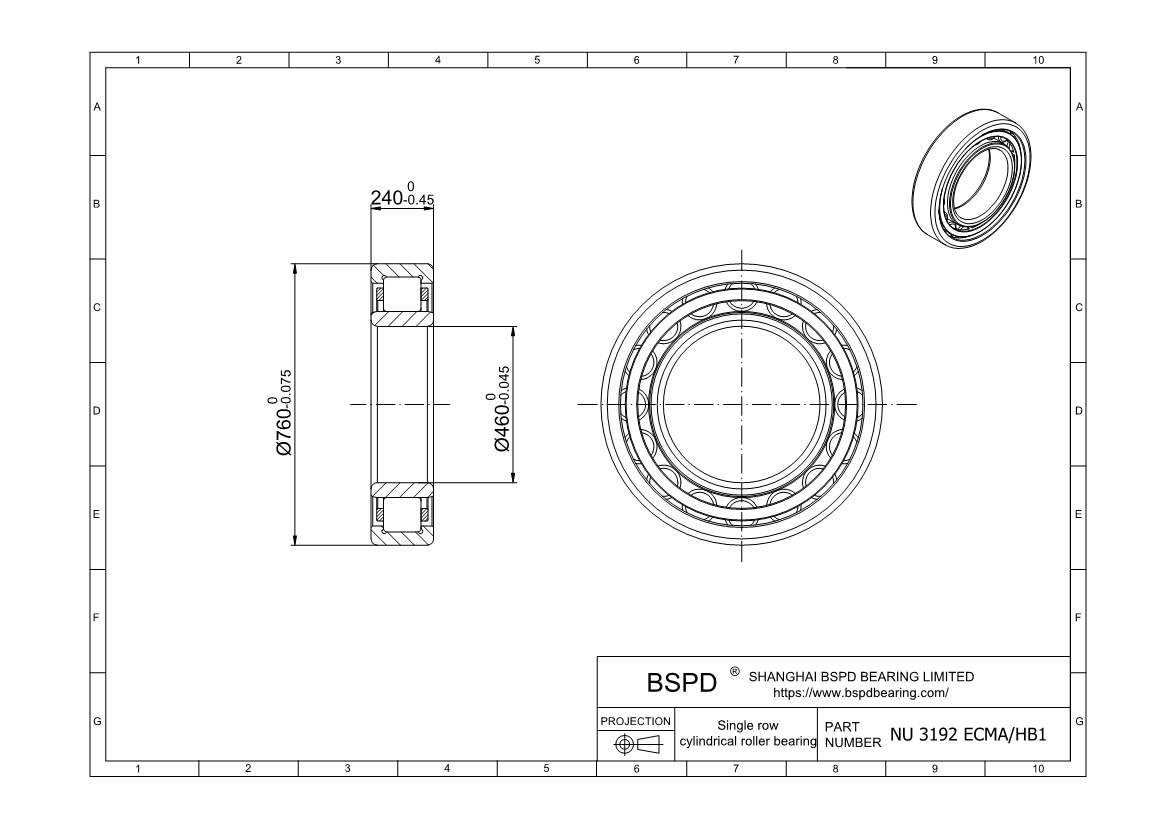

NU 3192 ECMA/HB1
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 460 mm； Outer Diameter: 760 mm； Width (Thickness): 240 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 3192 ECMA/HB1 |
| Bore diameter | 460 mm |
| Outside diameter | 760 mm |
| Width | 240 mm |
| Basic dynamic load rating | 5280 kN |
| Basic static load rating | 9650 kN |
| Fatigue load limit | 735 kN |
| Reference speed | 670 r/min |
| Limiting speed | 1100 r/min |
| Mass | 450 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 662 mm |
| Raceway diameter | 529.3 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 3192 ECMA/HB1 ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
