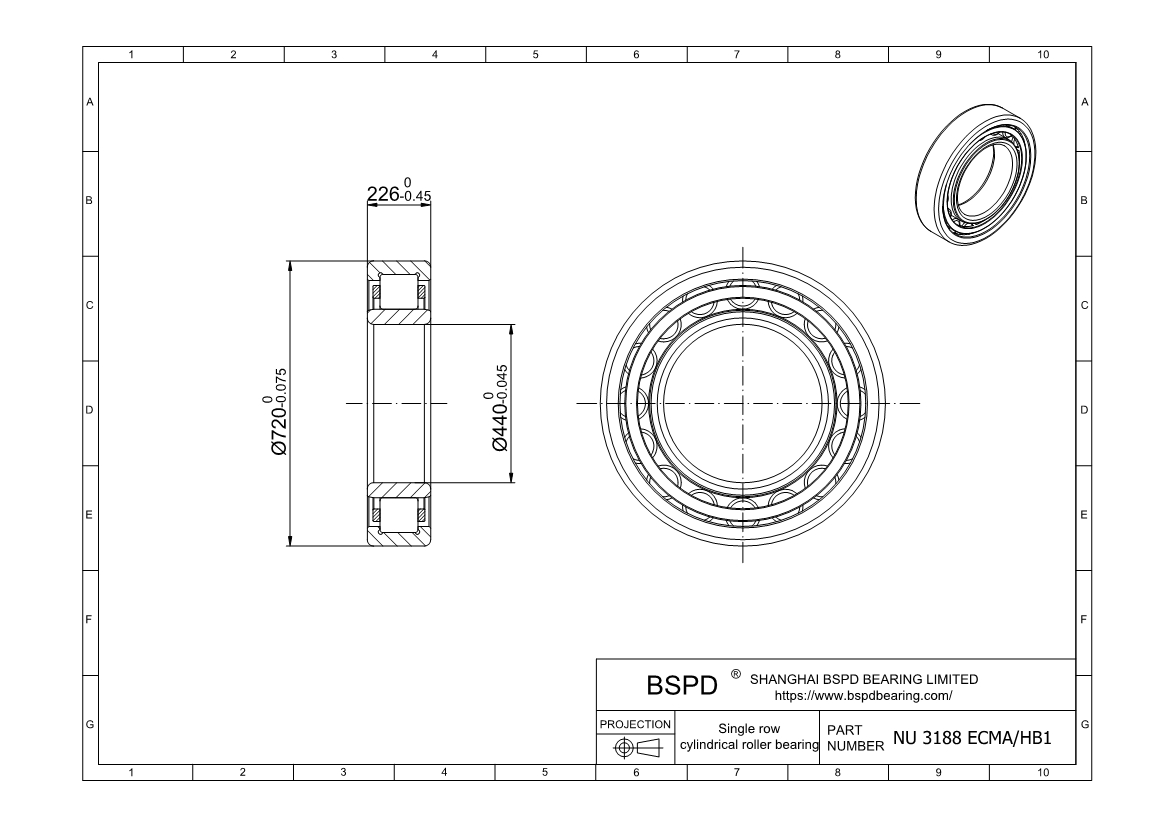

NU 3188 ECMA/HB1
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 440 mm； Outer Diameter: 720 mm； Width (Thickness): 226 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 3188 ECMA/HB1 |
| Bore diameter | 440 mm |
| Outside diameter | 720 mm |
| Width | 226 mm |
| Basic dynamic load rating | 5120 kN |
| Basic static load rating | 10000 kN |
| Fatigue load limit | 765 kN |
| Reference speed | 700 r/min |
| Limiting speed | 1200 r/min |
| Mass | 388 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 637 mm |
| Raceway diameter | 509 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 3188 ECMA/HB1 ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
