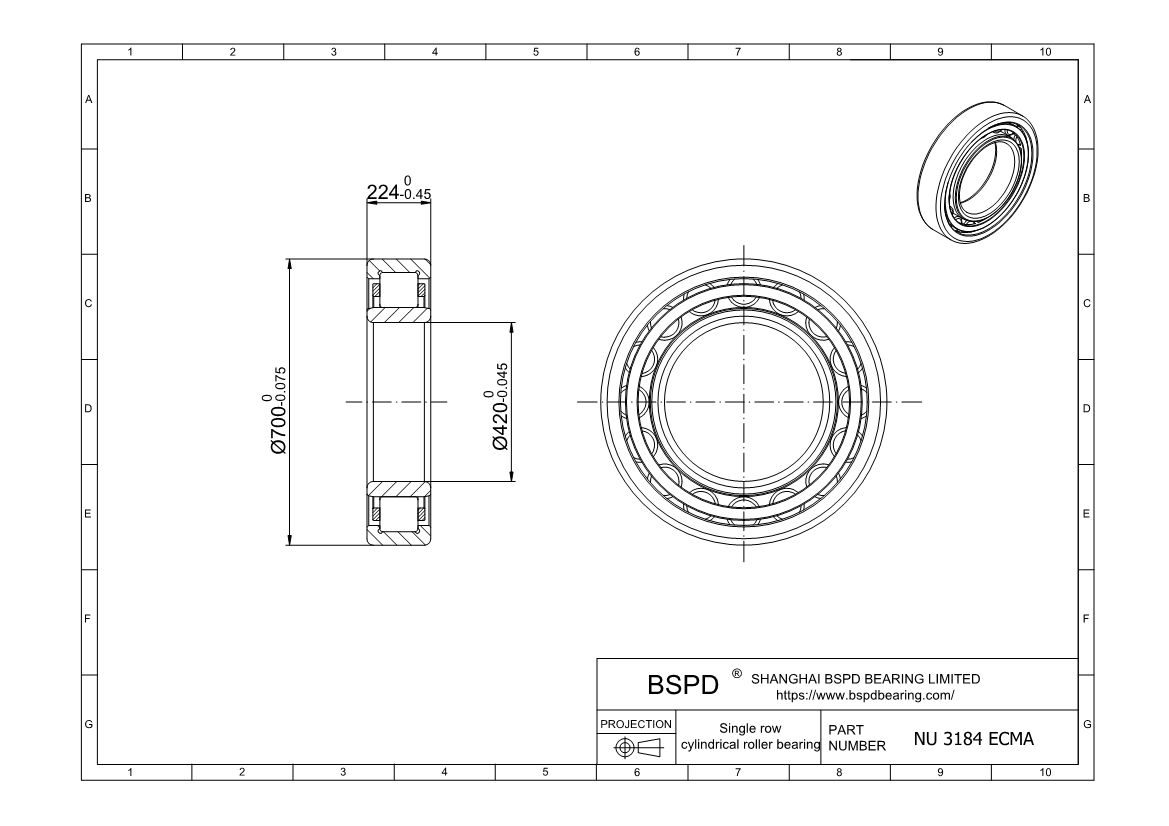

NU 3184 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 420 mm； Outer Diameter: 700 mm； Width (Thickness): 224 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 3184 ECMA |
| Bore diameter | 420 mm |
| Outside diameter | 700 mm |
| Width | 224 mm |
| Basic dynamic load rating | 4950 kN |
| Basic static load rating | 9000 kN |
| Fatigue load limit | 695 kN |
| Reference speed | 750 r/min |
| Limiting speed | 1300 r/min |
| Mass | 365 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 613 mm |
| Raceway diameter | 485 mm |
Print PDF
Request a 3D CAD Model
