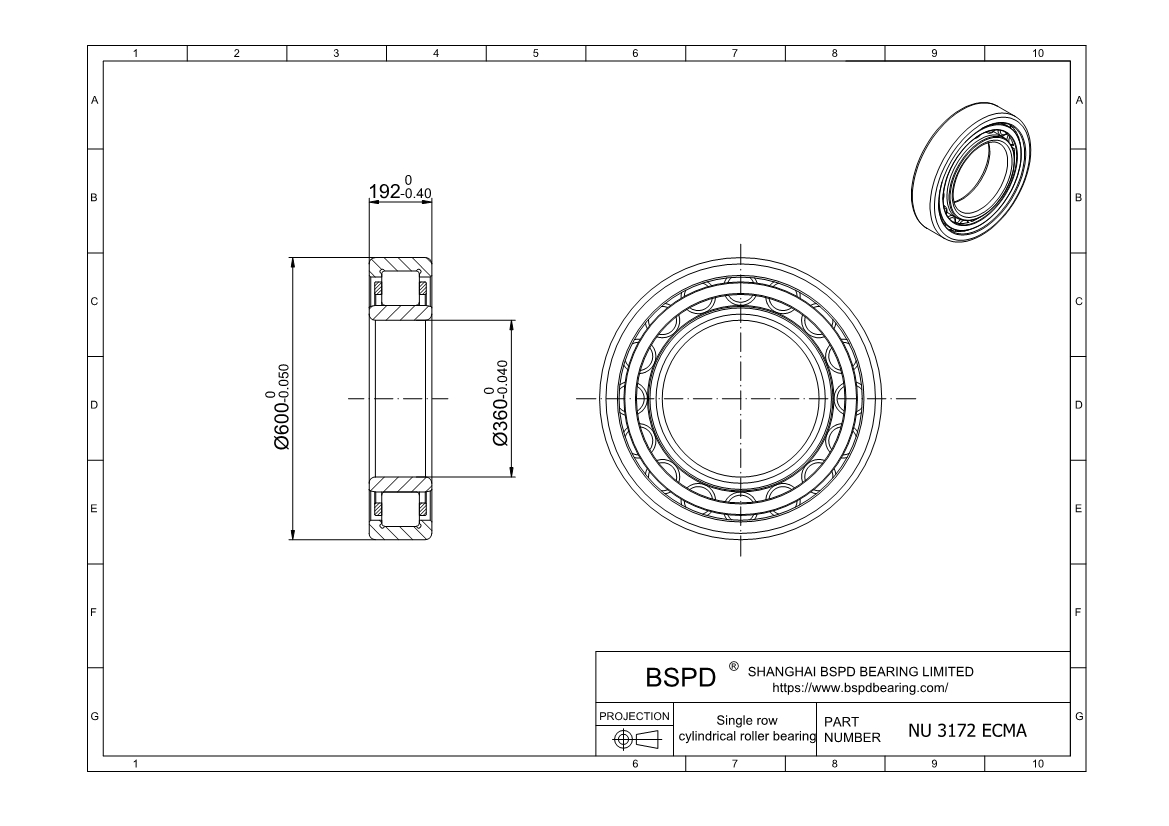

NU 3172 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 600 mm； Width (Thickness): 192 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 3172 ECMA |
| Bore diameter | 360 mm |
| Outside diameter | 600 mm |
| Width | 192 mm |
| Basic dynamic load rating | 3410 kN |
| Basic static load rating | 6100 kN |
| Fatigue load limit | 490 kN |
| Reference speed | 900 r/min |
| Limiting speed | 1500 r/min |
| Mass | 226 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 475 mm |
| Raceway diameter | 420 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 3172 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
