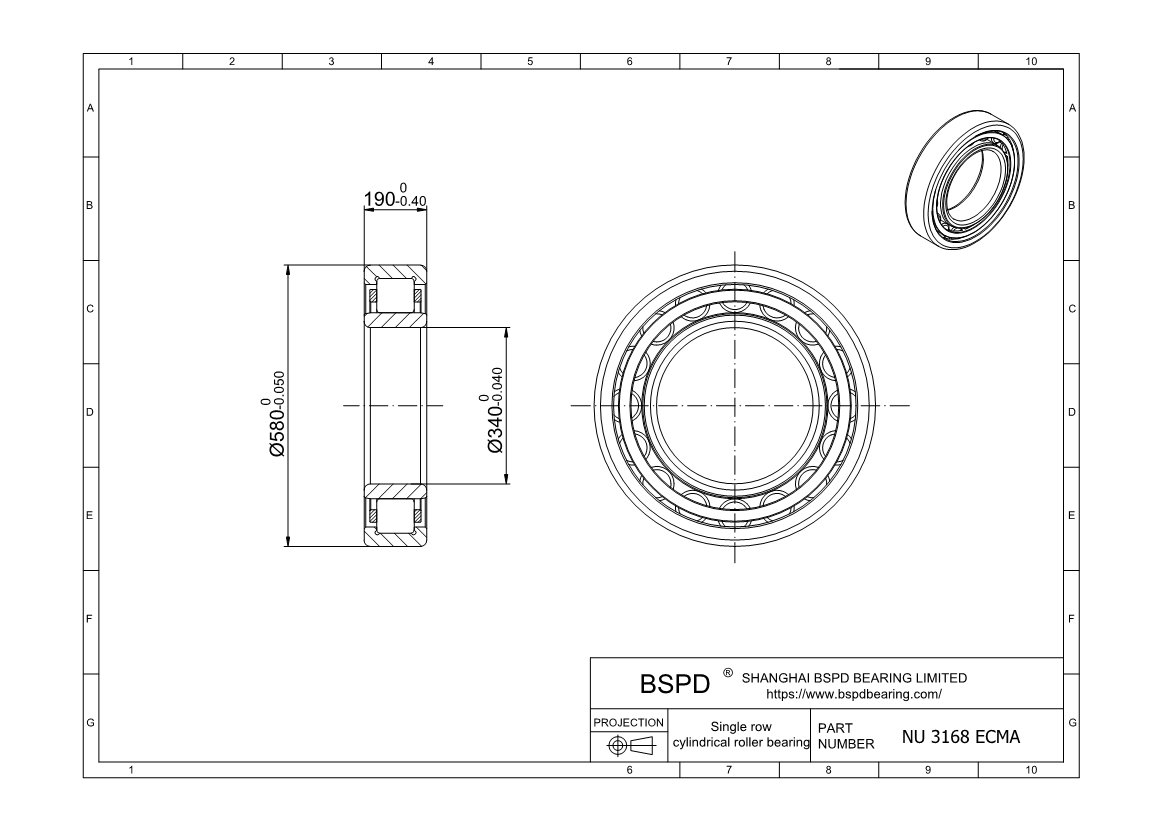

NU 3168 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 340 mm； Outer Diameter: 580 mm； Width (Thickness): 190 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 3168 ECMA |
| Bore diameter | 340 mm |
| Outside diameter | 580 mm |
| Width | 190 mm |
| Basic dynamic load rating | 3470 kN |
| Basic static load rating | 5850 kN |
| Fatigue load limit | 490 kN |
| Reference speed | 950 r/min |
| Limiting speed | 1600 r/min |
| Mass | 217 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 507 mm |
| Raceway diameter | 390.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 3168 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
