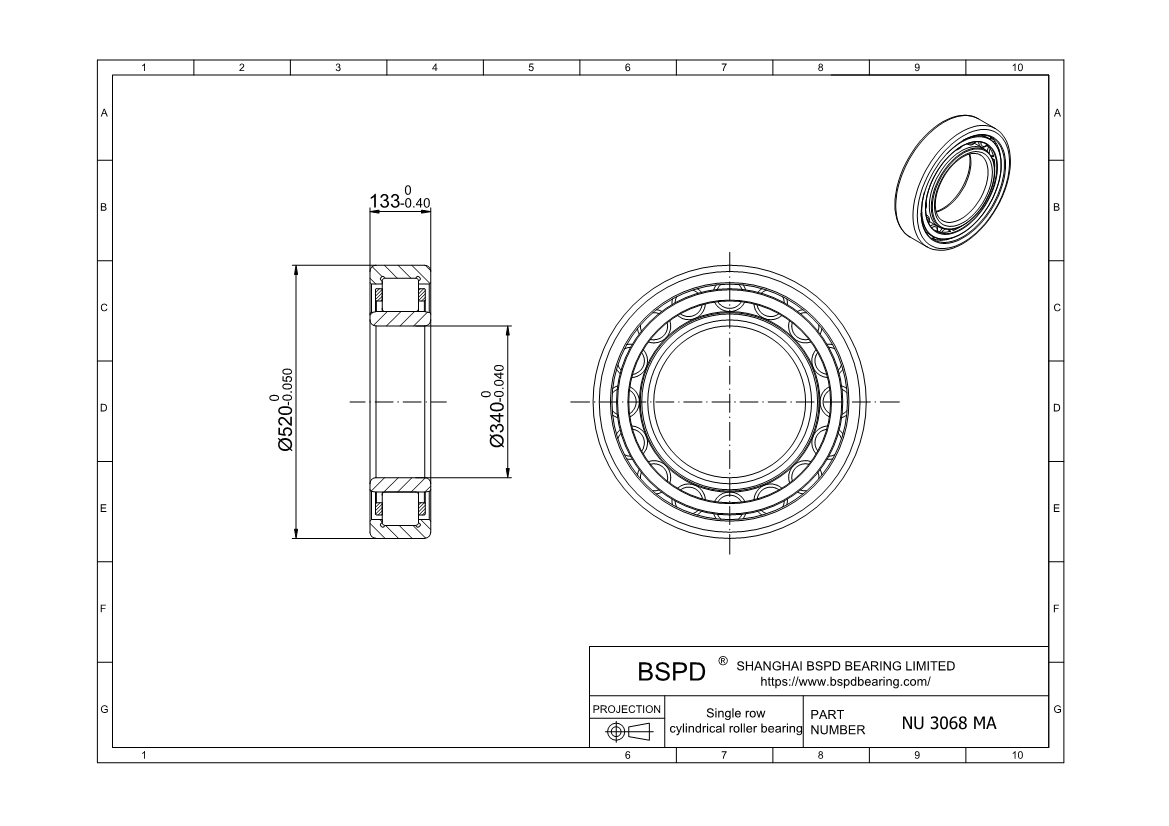

NU 3068 MA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 340 mm； Outer Diameter: 520 mm； Width (Thickness): 133 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 3068 MA |
| Bore diameter | 340 mm |
| Outside diameter | 520 mm |
| Width | 133 mm |
| Basic dynamic load rating | 2200 kN |
| Basic static load rating | 4150 kN |
| Fatigue load limit | 365 kN |
| Reference speed | 1100 r/min |
| Limiting speed | 1700 r/min |
| Mass | 109 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 465 mm |
| Raceway diameter | 385 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 3068 MA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
