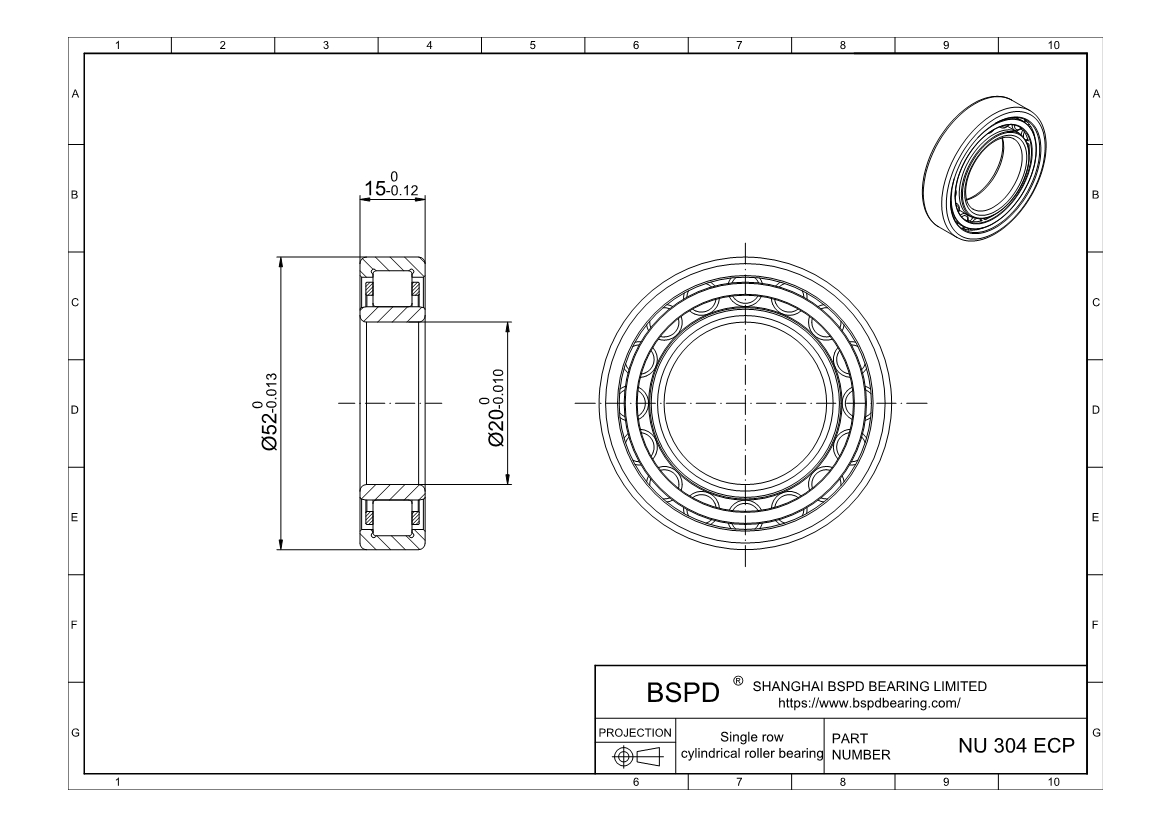

NU 304 ECP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 20 mm； Outer Diameter: 52 mm； Width (Thickness): 15 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 304 ECP |
| Bore diameter | 20 mm |
| Outside diameter | 52 mm |
| Width | 15 mm |
| Basic dynamic load rating | 35.5 kN |
| Basic static load rating | 26 kN |
| Fatigue load limit | 3.25 kN |
| Reference speed | 15000 r/min |
| Limiting speed | 18000 r/min |
| Mass | 0.14 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 41.85 mm |
| Raceway diameter | 27.5 mm |
Print PDF
Request a 3D CAD Model
