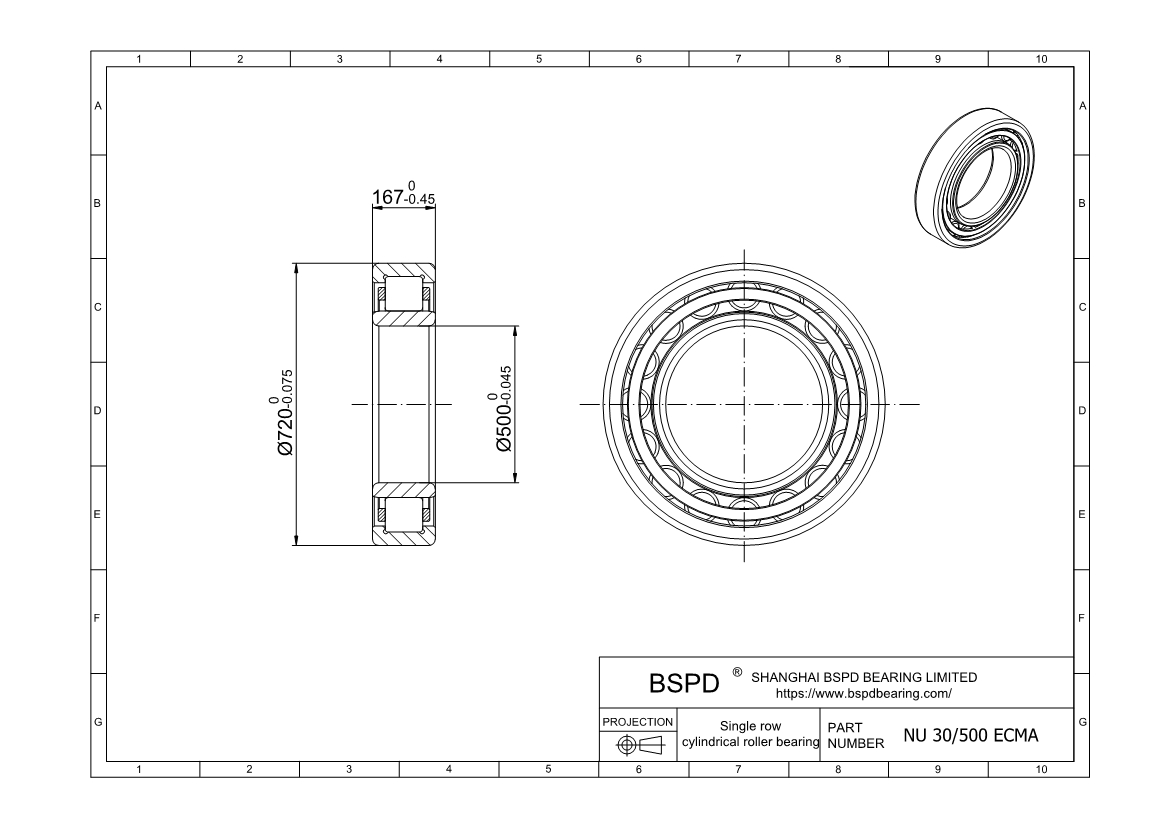

NU 30/500 ECMA Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 500 mm； Outer Diameter: 720 mm； Width (Thickness): 167 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NU 30/500 ECMA
Bore diameter	500 mm
Outside diameter	720 mm
Width	167 mm
Basic dynamic load rating	3800 kN
Basic static load rating	7350 kN
Fatigue load limit	560 kN
Reference speed	750 r/min
Limiting speed	1100 r/min
Mass	233 kg
Shoulder diameter of inner ring	–
Shoulder diameter of outer ring	650 mm
Raceway diameter	540.8 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
