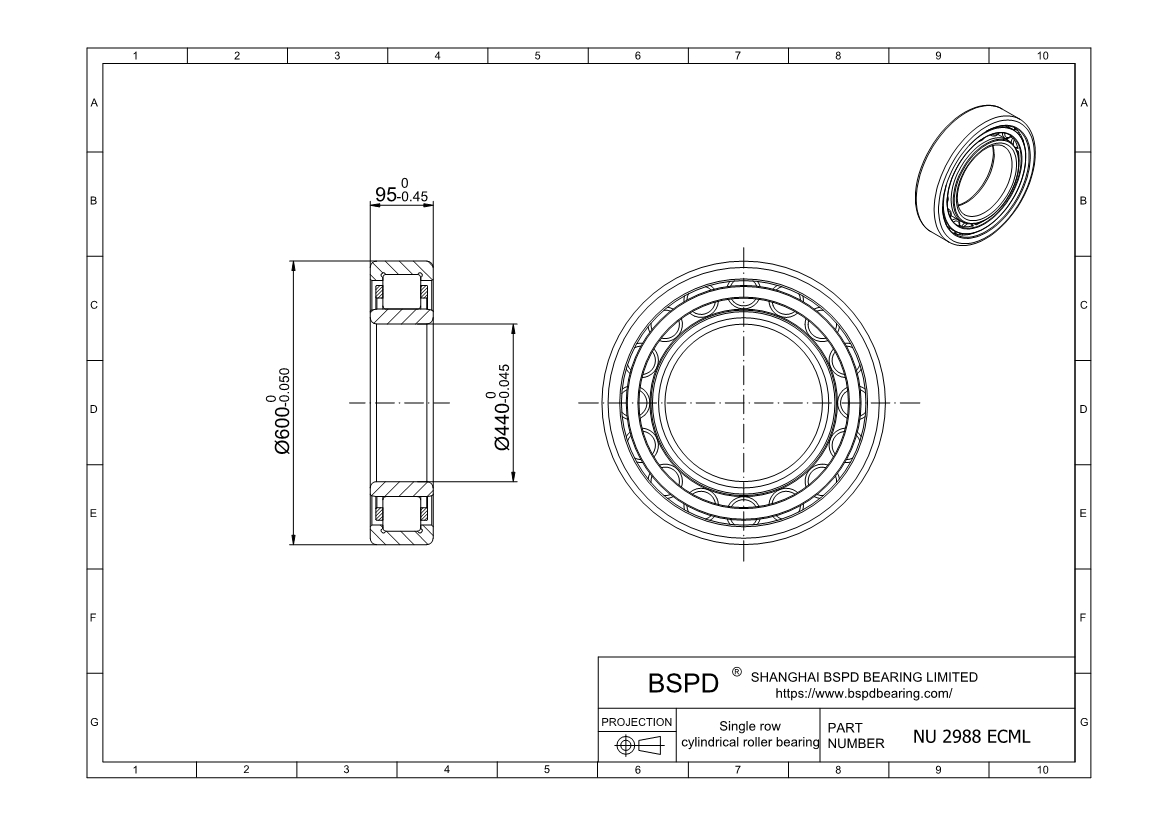

NU 2988 ECML
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 440 mm； Outer Diameter: 600 mm； Width (Thickness): 95 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 2988 ECML |
| Bore diameter | 440 mm |
| Outside diameter | 600 mm |
| Width | 95 mm |
| Basic dynamic load rating | 1870 kN |
| Basic static load rating | 3900 kN |
| Fatigue load limit | 340 kN |
| Reference speed | 1100 r/min |
| Limiting speed | 1600 r/min |
| Mass | 81 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 552 mm |
| Raceway diameter | 481.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 2988 ECML ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
