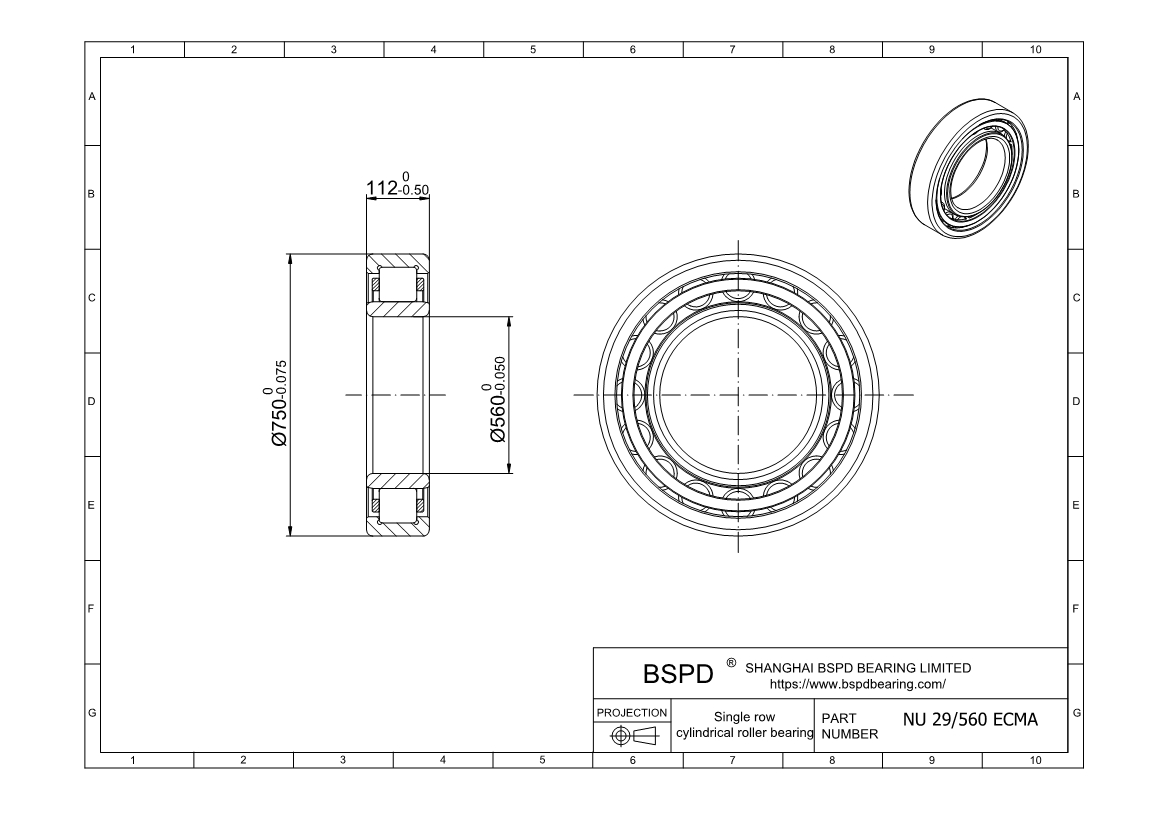

NU 29/560 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 560 mm； Outer Diameter: 750 mm； Width (Thickness): 112 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 29/560 ECMA |
| Bore diameter | 560 mm |
| Outside diameter | 750 mm |
| Width | 112 mm |
| Basic dynamic load rating | 2460 kN |
| Basic static load rating | 5700 kN |
| Fatigue load limit | 450 kN |
| Reference speed | 800 r/min |
| Limiting speed | 1000 r/min |
| Mass | 145 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 693 mm |
| Raceway diameter | 608 mm |
Print PDF
Request a 3D CAD Model
