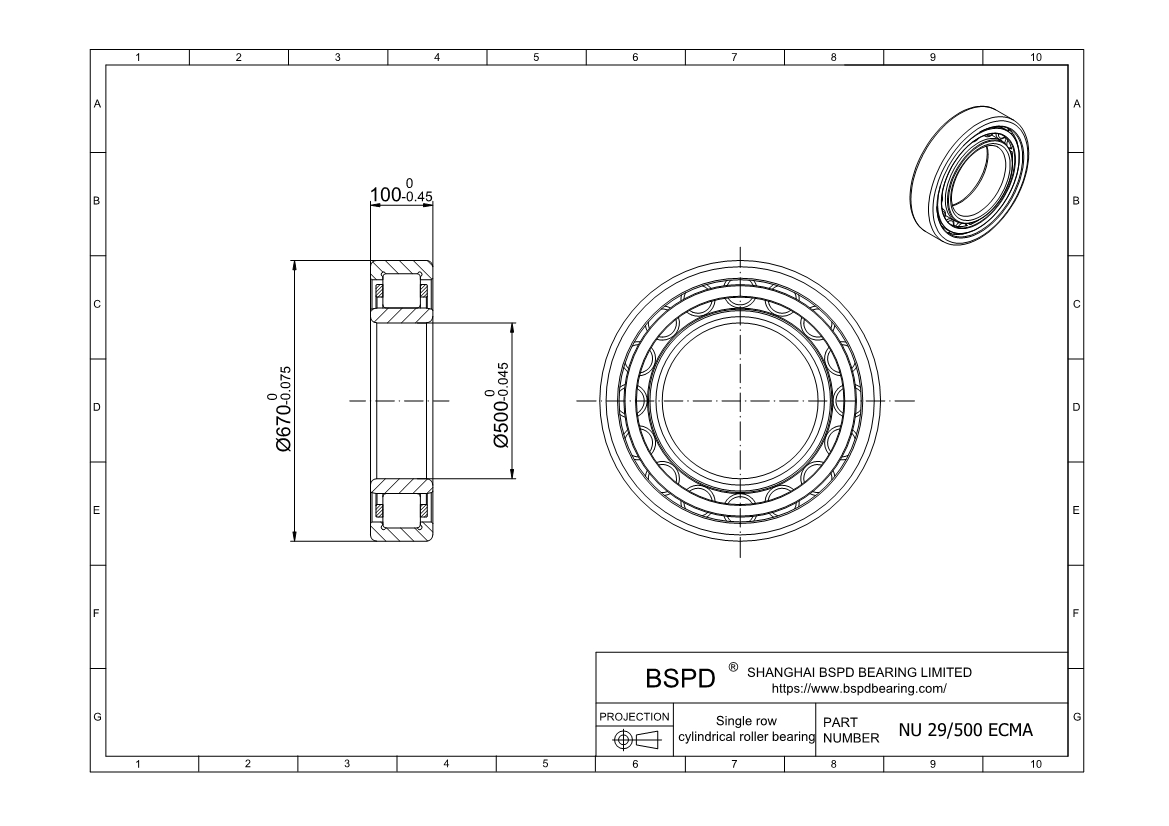

NU 29/500 ECMA Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 500 mm； Outer Diameter: 670 mm； Width (Thickness): 100 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NU 29/500 ECMA
Bore diameter	500 mm
Outside diameter	670 mm
Width	100 mm
Basic dynamic load rating	2050 kN
Basic static load rating	4250 kN
Fatigue load limit	355 kN
Reference speed	900 r/min
Limiting speed	1200 r/min
Mass	107 kg
Shoulder diameter of inner ring	–
Shoulder diameter of outer ring	619 mm
Raceway diameter	539.5 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
