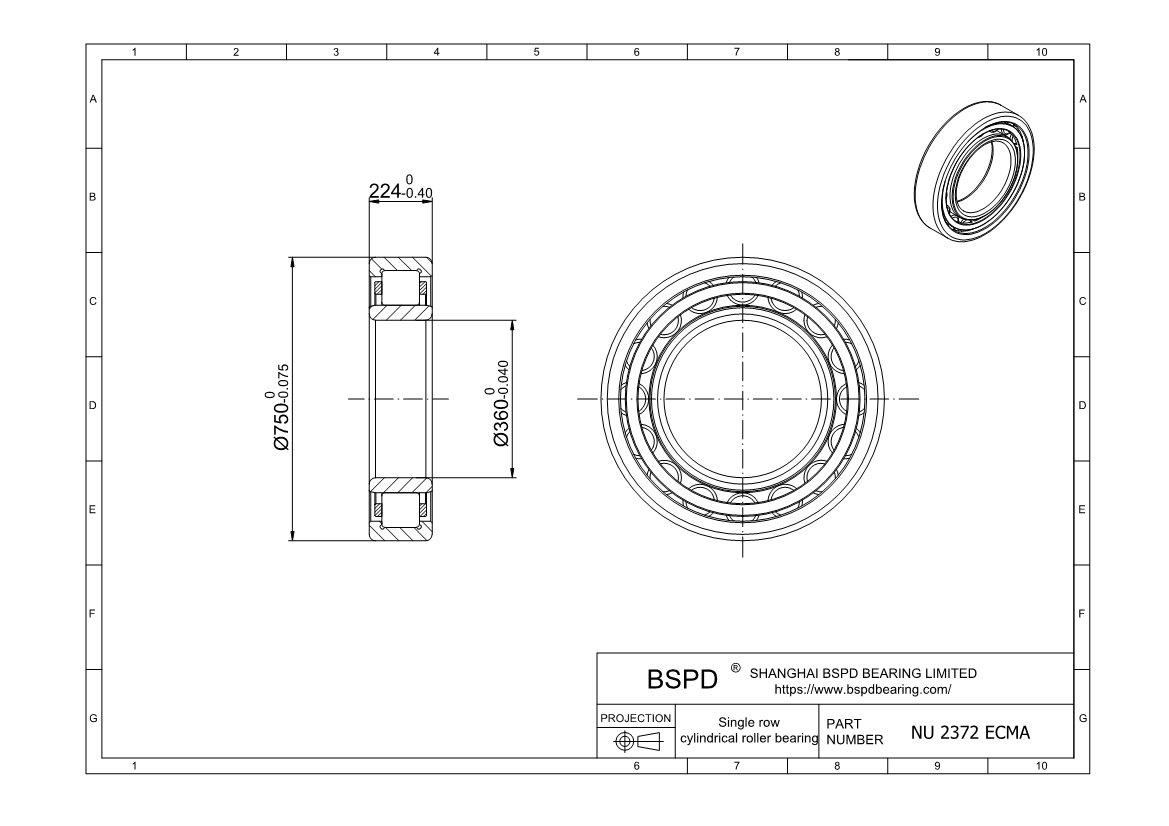

NU 2372 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 750 mm； Width (Thickness): 224 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 2372 ECMA |
| Bore diameter | 360 mm |
| Outside diameter | 750 mm |
| Width | 224 mm |
| Basic dynamic load rating | 5010 kN |
| Basic static load rating | 8150 kN |
| Fatigue load limit | 630 kN |
| Reference speed | 850 r/min |
| Limiting speed | 1300 r/min |
| Mass | 510 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 617 mm |
| Raceway diameter | 465 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 2372 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
