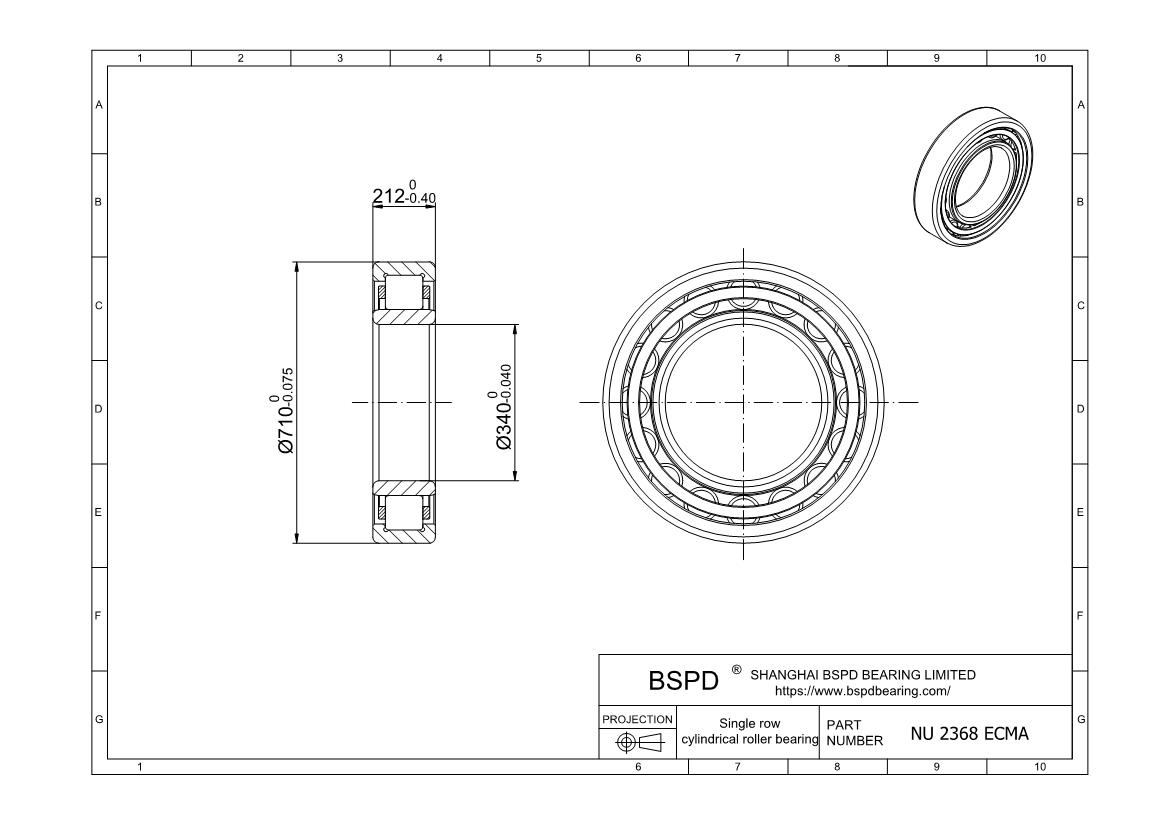

NU 2368 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 340 mm； Outer Diameter: 710 mm； Width (Thickness): 212 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 2368 ECMA |
| Bore diameter | 340 mm |
| Outside diameter | 710 mm |
| Width | 212 mm |
| Basic dynamic load rating | 5610 kN |
| Basic static load rating | 8650 kN |
| Fatigue load limit | 680 kN |
| Reference speed | 800 r/min |
| Limiting speed | 1400 r/min |
| Mass | 439 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 602 mm |
| Raceway diameter | 425 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 2368 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
