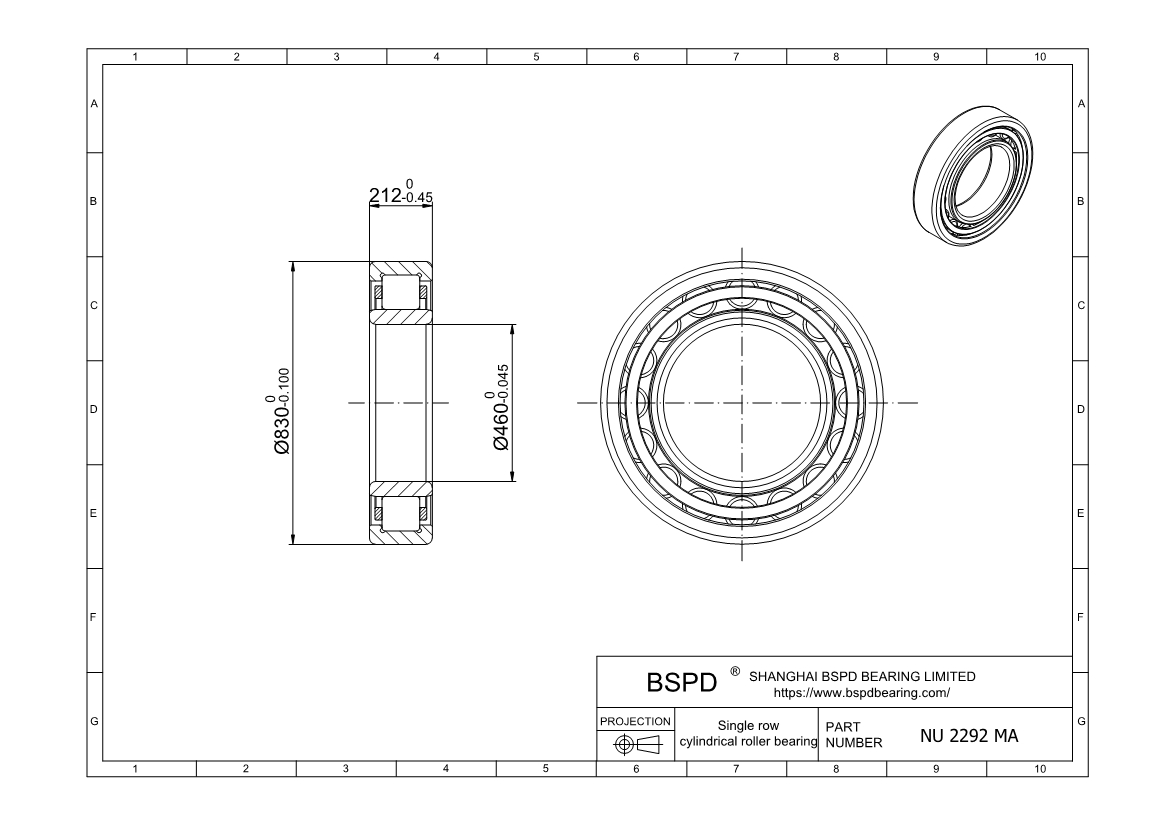

NU 2292 MA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 460 mm； Outer Diameter: 830 mm； Width (Thickness): 212 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 2292 MA |
| Bore diameter | 460 mm |
| Outside diameter | 830 mm |
| Width | 212 mm |
| Basic dynamic load rating | 5120 kN |
| Basic static load rating | 8650 kN |
| Fatigue load limit | 655 kN |
| Reference speed | 700 r/min |
| Limiting speed | 1100 r/min |
| Mass | 527 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 706 mm |
| Raceway diameter | 554 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 2292 MA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
