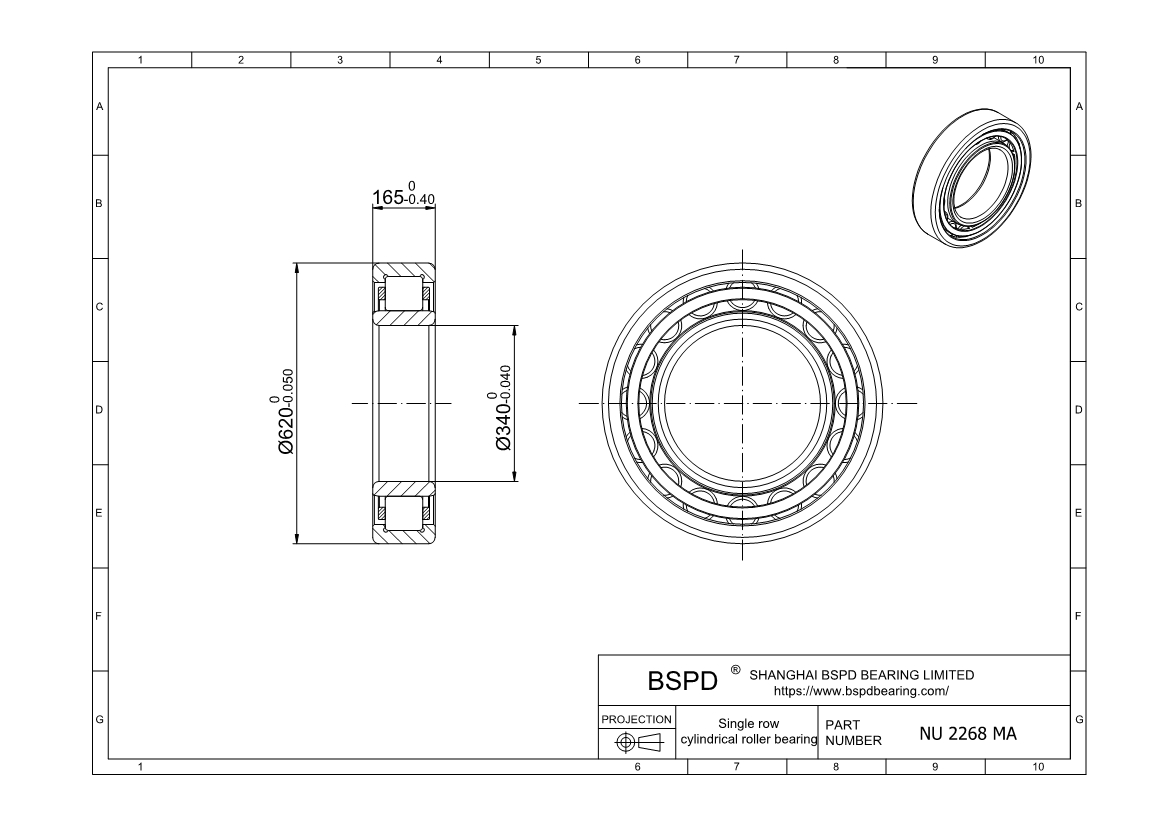

NU 2268 MA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 340 mm； Outer Diameter: 620 mm； Width (Thickness): 165 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 2268 MA |
| Bore diameter | 340 mm |
| Outside diameter | 620 mm |
| Width | 165 mm |
| Basic dynamic load rating | 2640 kN |
| Basic static load rating | 4500 kN |
| Fatigue load limit | 365 kN |
| Reference speed | 1000 r/min |
| Limiting speed | 1500 r/min |
| Mass | 226 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 515 mm |
| Raceway diameter | 416 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 2268 MA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
