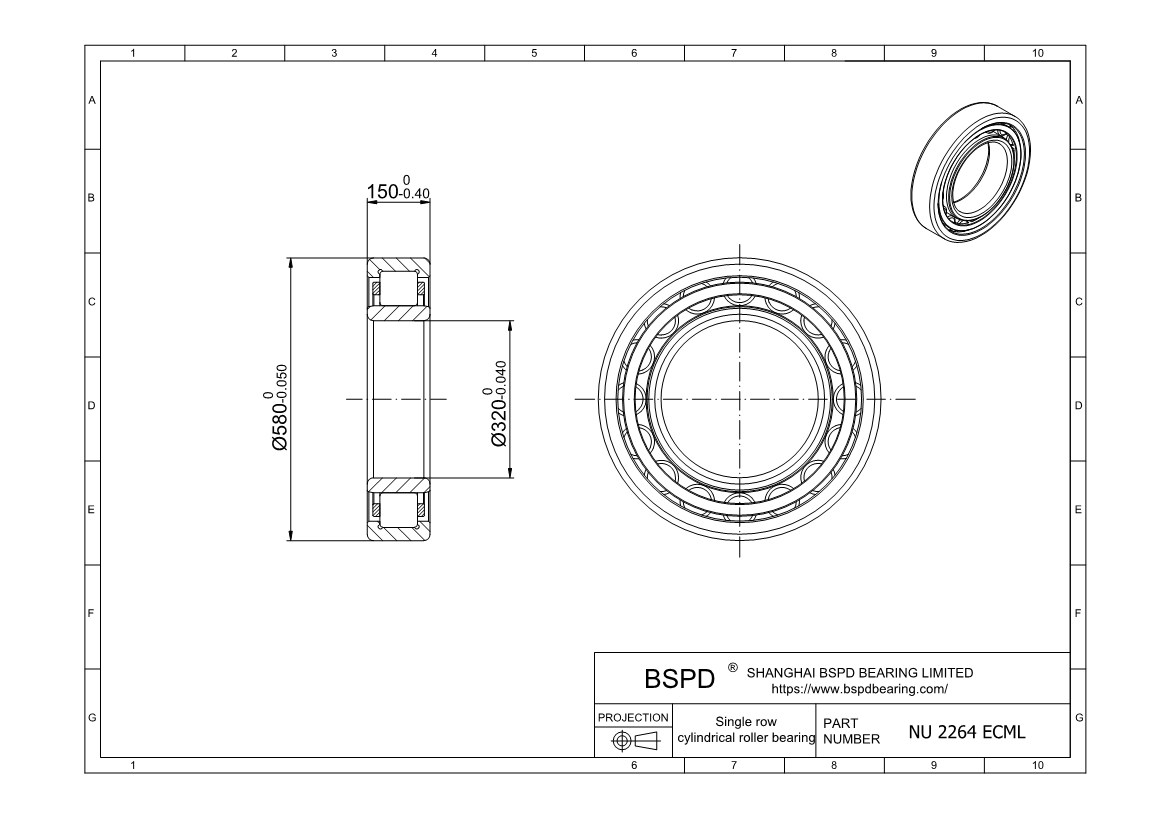

NU 2264 ECML
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 320 mm； Outer Diameter: 580 mm； Width (Thickness): 150 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 2264 ECML |
| Bore diameter | 320 mm |
| Outside diameter | 580 mm |
| Width | 150 mm |
| Basic dynamic load rating | 3190 kN |
| Basic static load rating | 5000 kN |
| Fatigue load limit | 415 kN |
| Reference speed | 1000 r/min |
| Limiting speed | 1900 r/min |
| Mass | 176 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 506 mm |
| Raceway diameter | 380 mm |
Print PDF
Request a 3D CAD Model
