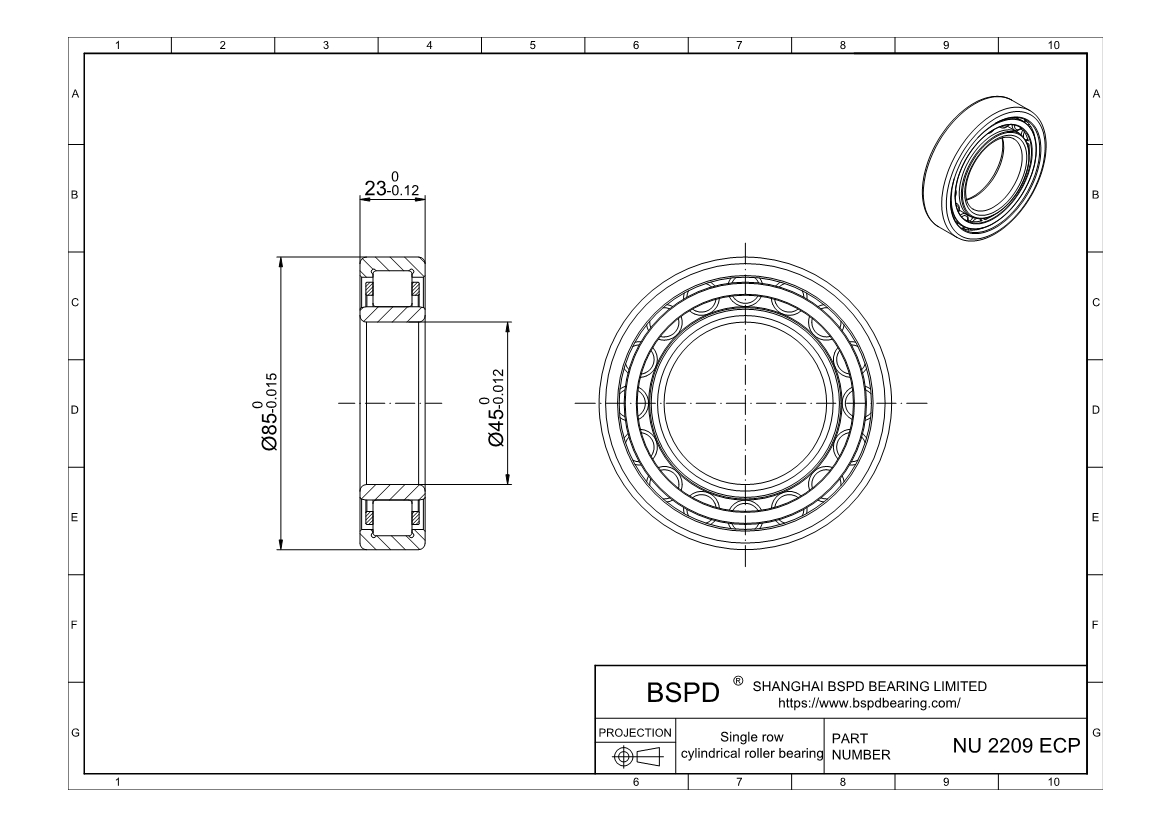

NU 2209 ECP Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 45 mm； Outer Diameter: 85 mm； Width (Thickness): 23 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NU 2209 ECP
Bore diameter	45 mm
Outside diameter	85 mm
Width	23 mm
Basic dynamic load rating	85 kN
Basic static load rating	81.5 kN
Fatigue load limit	10.6 kN
Reference speed	9000 r/min
Limiting speed	9500 r/min
Mass	0.52 kg
Shoulder diameter of inner ring	–
Shoulder diameter of outer ring	72.4 mm
Raceway diameter	54.5 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NU 2209 ECP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
