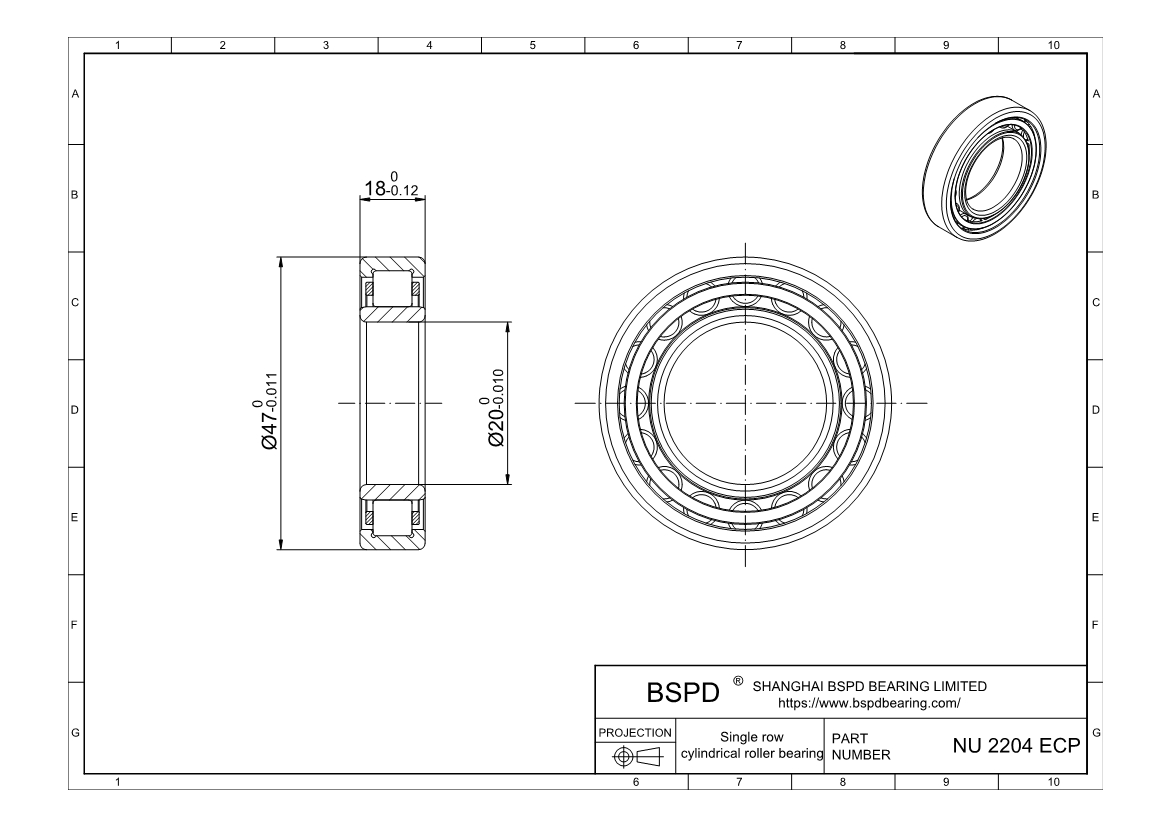

NU 2204 ECP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 20 mm； Outer Diameter: 47 mm； Width (Thickness): 18 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 2204 ECP |
| Bore diameter | 20 mm |
| Outside diameter | 47 mm |
| Width | 18 mm |
| Basic dynamic load rating | 34.5 kN |
| Basic static load rating | 27.5 kN |
| Fatigue load limit | 3.45 kN |
| Reference speed | 17000 r/min |
| Limiting speed | 19000 r/min |
| Mass | 0.14 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 38.3 mm |
| Raceway diameter | 26.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 2204 ECP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
