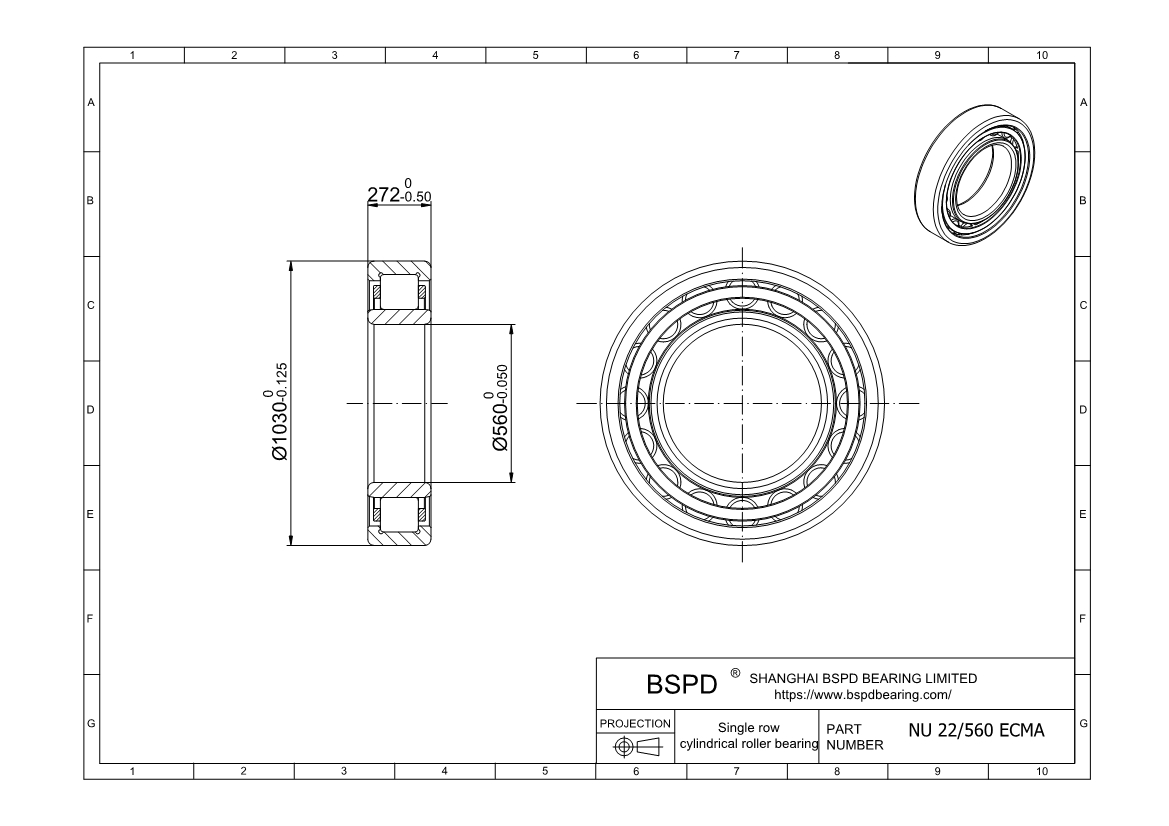

NU 22/560 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 560 mm； Outer Diameter: 1030 mm； Width (Thickness): 272 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 22/560 ECMA |
| Bore diameter | 560 mm |
| Outside diameter | 1030 mm |
| Width | 272 mm |
| Basic dynamic load rating | 9900 kN |
| Basic static load rating | 16600 kN |
| Fatigue load limit | 1160 kN |
| Reference speed | 530 r/min |
| Limiting speed | 800 r/min |
| Mass | 1090 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 900 mm |
| Raceway diameter | 664 mm |
Print PDF
Request a 3D CAD Model
