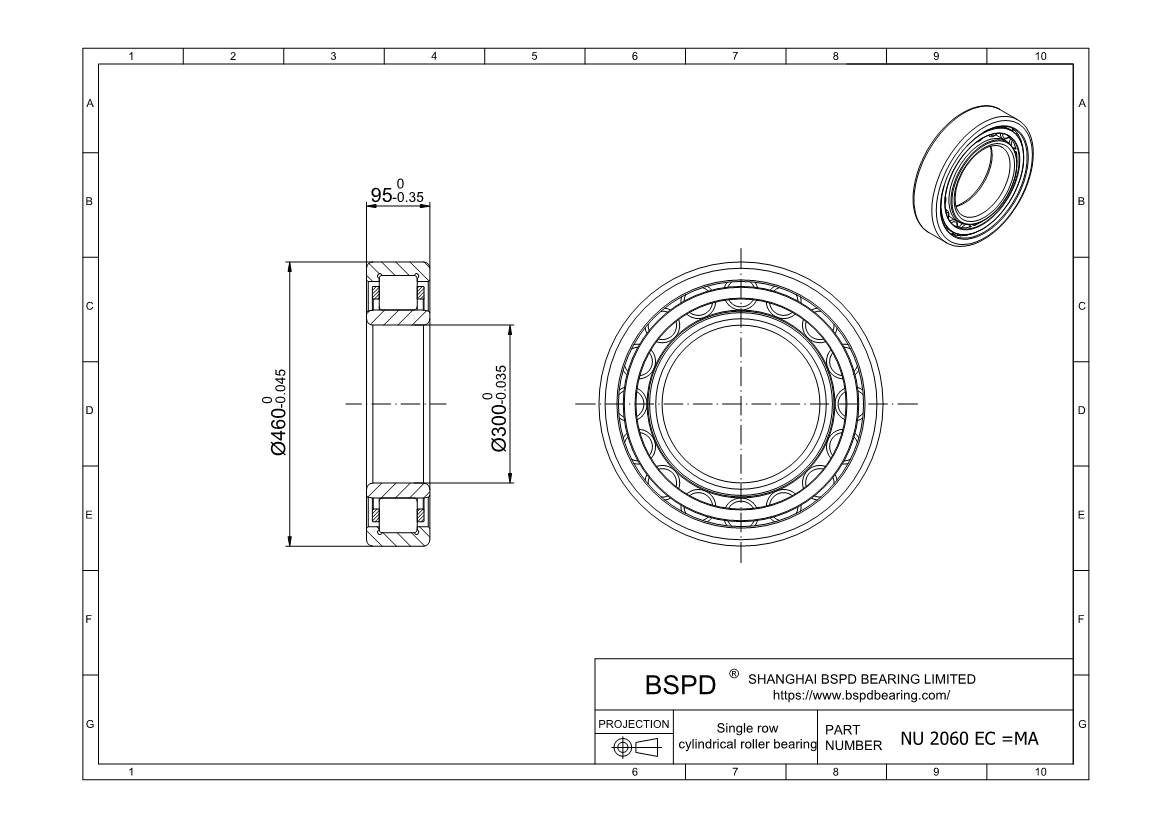

NU 2060 EC =MA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 460 mm； Width (Thickness): 95 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 2060 EC =MA |
| Bore diameter | 300 mm |
| Outside diameter | 460 mm |
| Width | 95 mm |
| Basic dynamic load rating | 1510 kN |
| Basic static load rating | 2600 kN |
| Fatigue load limit | 245 kN |
| Reference speed | 1300 r/min |
| Limiting speed | 2000 r/min |
| Mass | 62 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 410 mm |
| Raceway diameter | 341 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 2060 EC =MA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
