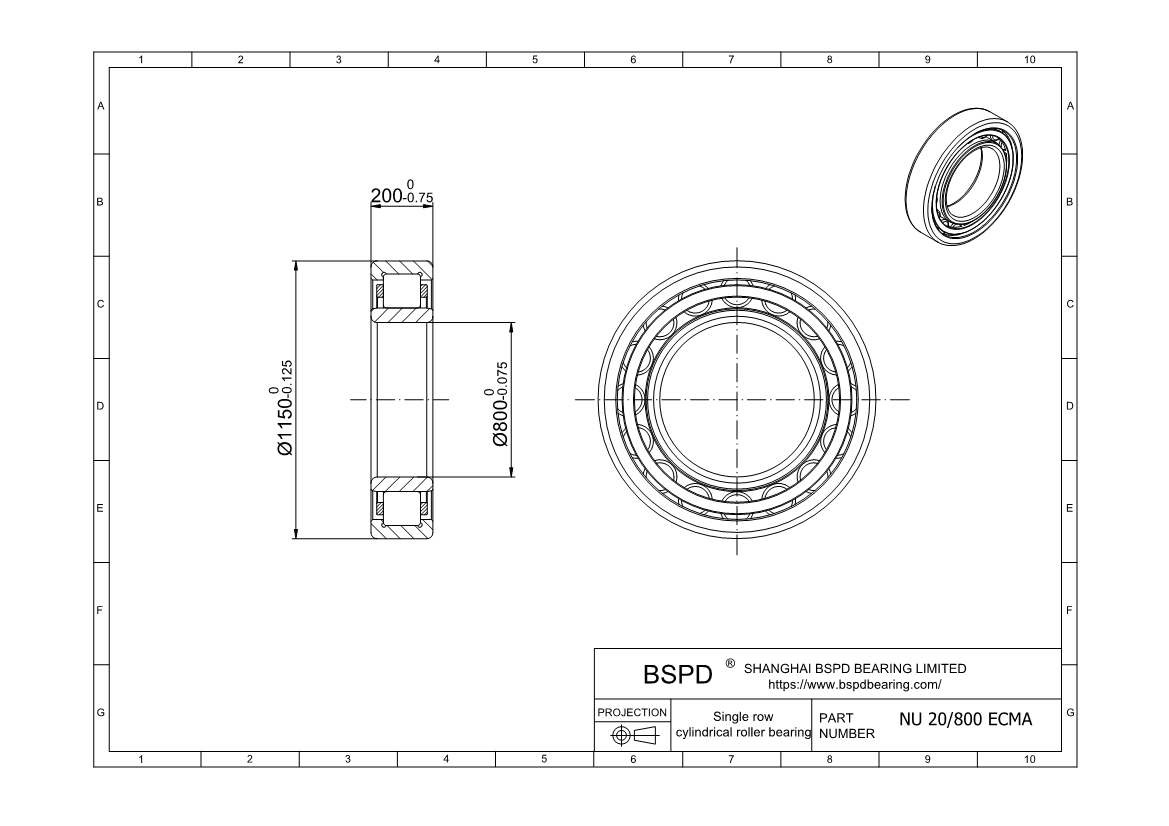

NU 20/800 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 800 mm； Outer Diameter: 1150 mm； Width (Thickness): 200 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 20/800 ECMA |
| Bore diameter | 800 mm |
| Outside diameter | 1150 mm |
| Width | 200 mm |
| Basic dynamic load rating | 7040 kN |
| Basic static load rating | 14600 kN |
| Fatigue load limit | 950 kN |
| Reference speed | 400 r/min |
| Limiting speed | 630 r/min |
| Mass | 715 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 1051 mm |
| Raceway diameter | 882 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 20/800 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
