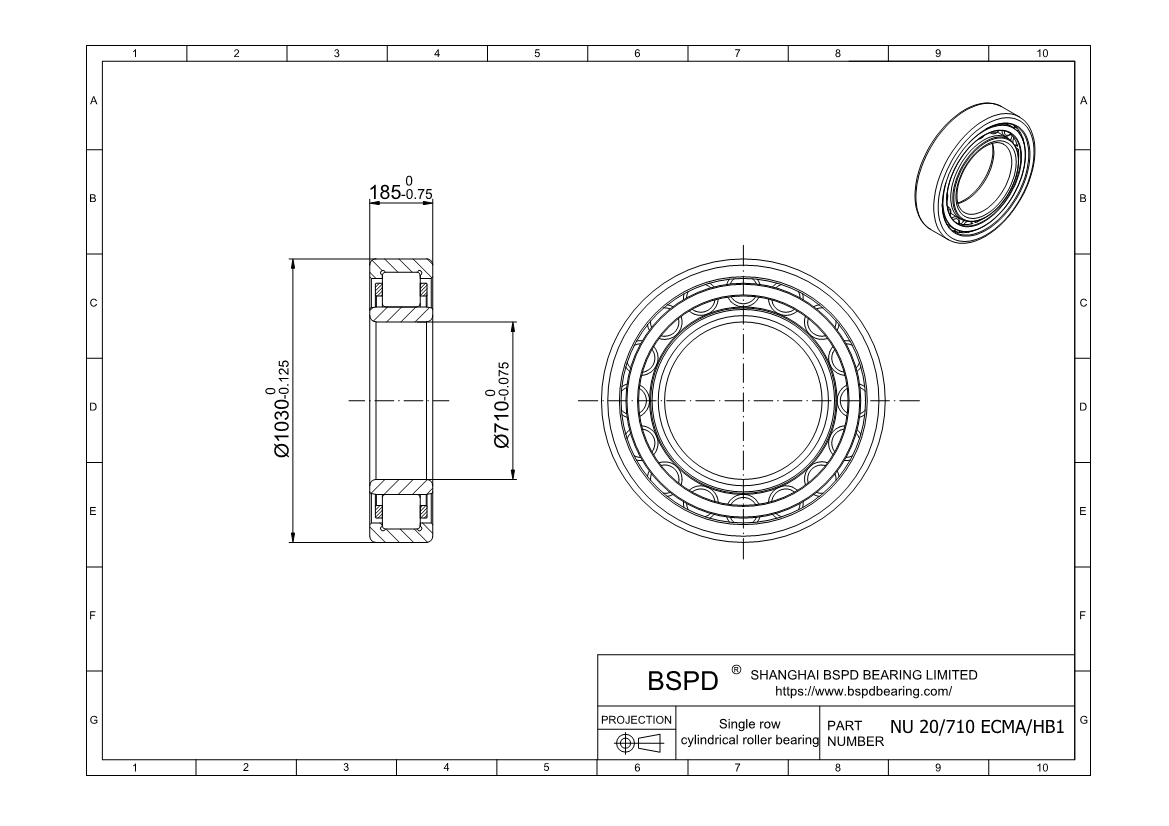

NU 20/710 ECMA/HB1
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 710 mm； Outer Diameter: 1030 mm； Width (Thickness): 185 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 20/710 ECMA/HB1 |
| Bore diameter | 710 mm |
| Outside diameter | 1030 mm |
| Width | 185 mm |
| Basic dynamic load rating | 5940 kN |
| Basic static load rating | 12000 kN |
| Fatigue load limit | 815 kN |
| Reference speed | 480 r/min |
| Limiting speed | 700 r/min |
| Mass | 540 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 939 mm |
| Raceway diameter | 787 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 20/710 ECMA/HB1 ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
