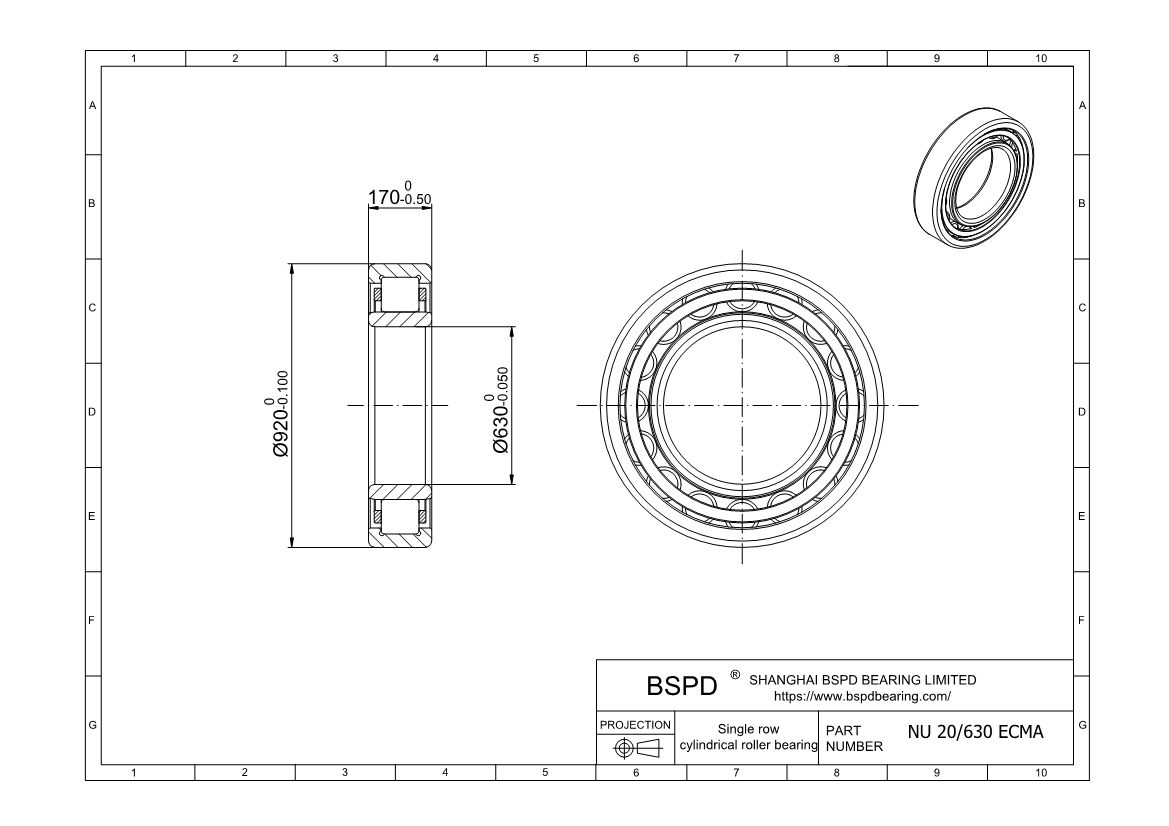

NU 20/630 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 630 mm； Outer Diameter: 920 mm； Width (Thickness): 170 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 20/630 ECMA |
| Bore diameter | 630 mm |
| Outside diameter | 920 mm |
| Width | 170 mm |
| Basic dynamic load rating | 4730 kN |
| Basic static load rating | 9500 kN |
| Fatigue load limit | 670 kN |
| Reference speed | 560 r/min |
| Limiting speed | 850 r/min |
| Mass | 400 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 832 mm |
| Raceway diameter | 699 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 20/630 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
