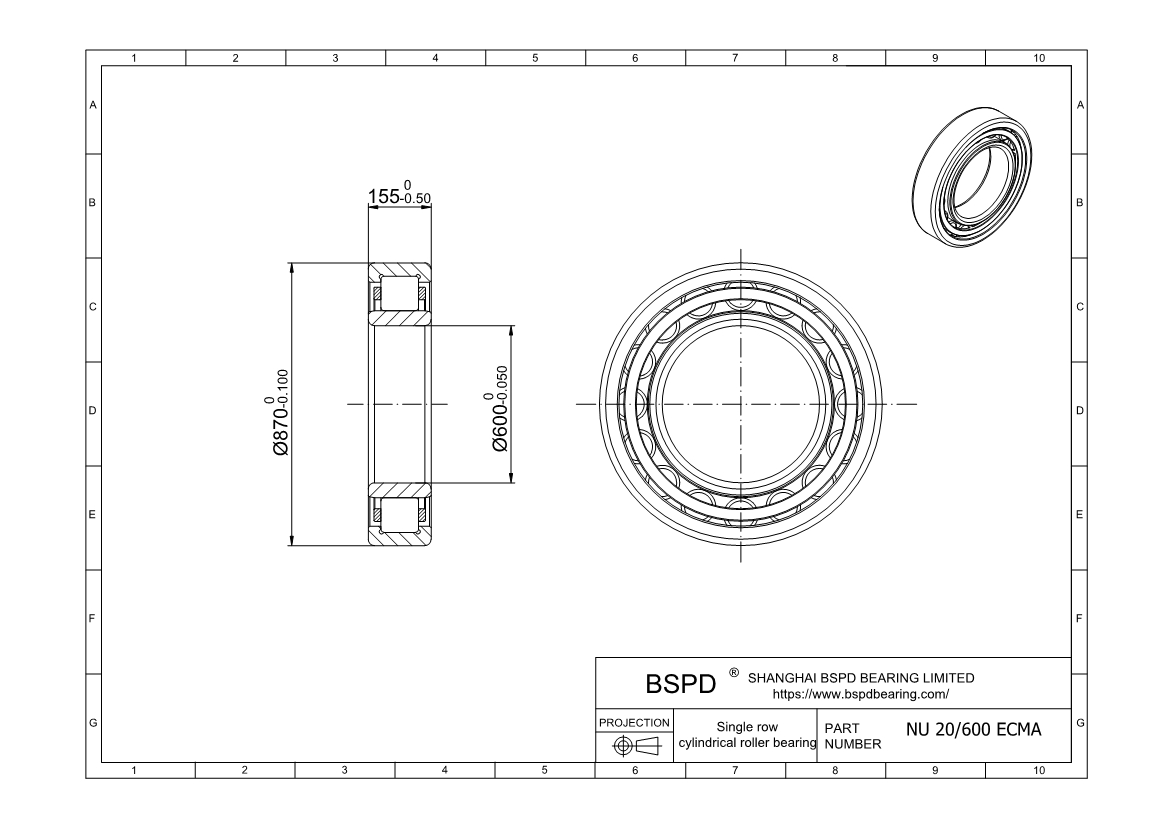

NU 20/600 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 600 mm； Outer Diameter: 870 mm； Width (Thickness): 155 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 20/600 ECMA |
| Bore diameter | 600 mm |
| Outside diameter | 870 mm |
| Width | 155 mm |
| Basic dynamic load rating | 4180 kN |
| Basic static load rating | 8000 kN |
| Fatigue load limit | 570 kN |
| Reference speed | 600 r/min |
| Limiting speed | 900 r/min |
| Mass | 325 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 793 mm |
| Raceway diameter | 661 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 20/600 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
