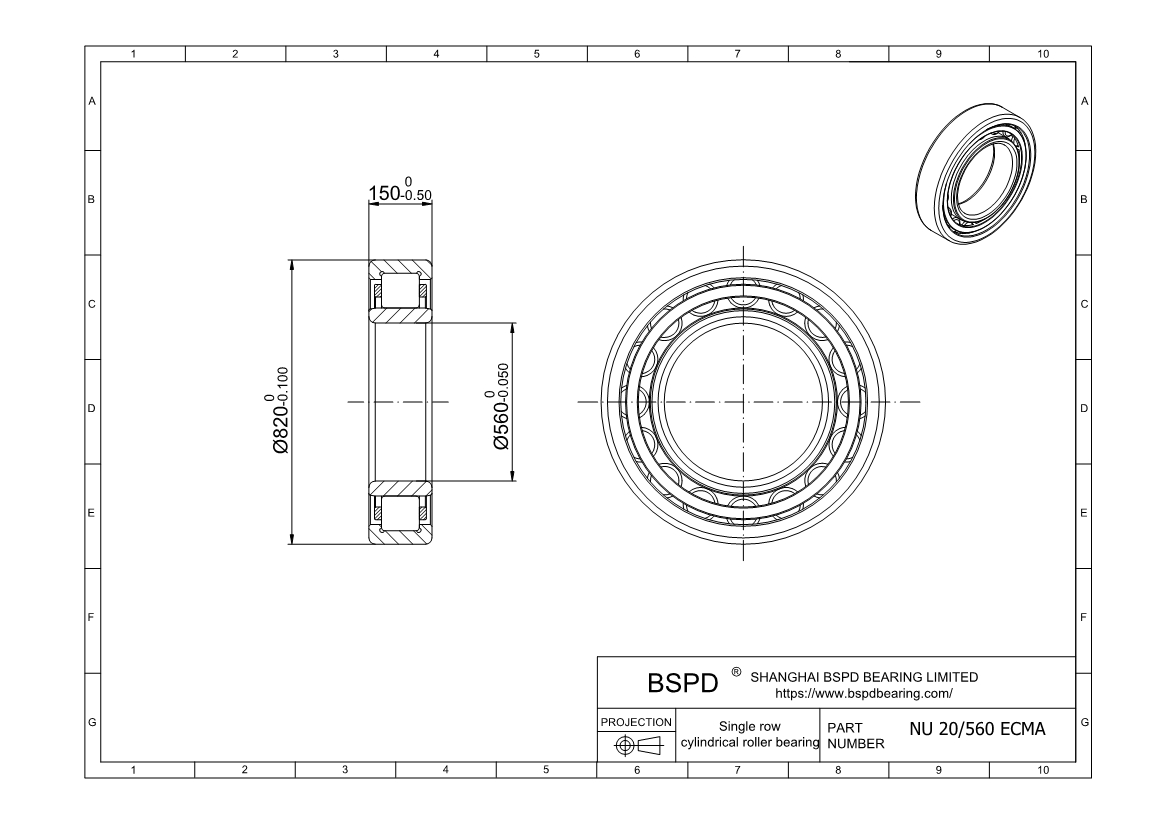

NU 20/560 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 560 mm； Outer Diameter: 820 mm； Width (Thickness): 150 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 20/560 ECMA |
| Bore diameter | 560 mm |
| Outside diameter | 820 mm |
| Width | 150 mm |
| Basic dynamic load rating | 3800 kN |
| Basic static load rating | 7650 kN |
| Fatigue load limit | 560 kN |
| Reference speed | 630 r/min |
| Limiting speed | 1000 r/min |
| Mass | 290 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 741 mm |
| Raceway diameter | 626 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 20/560 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
