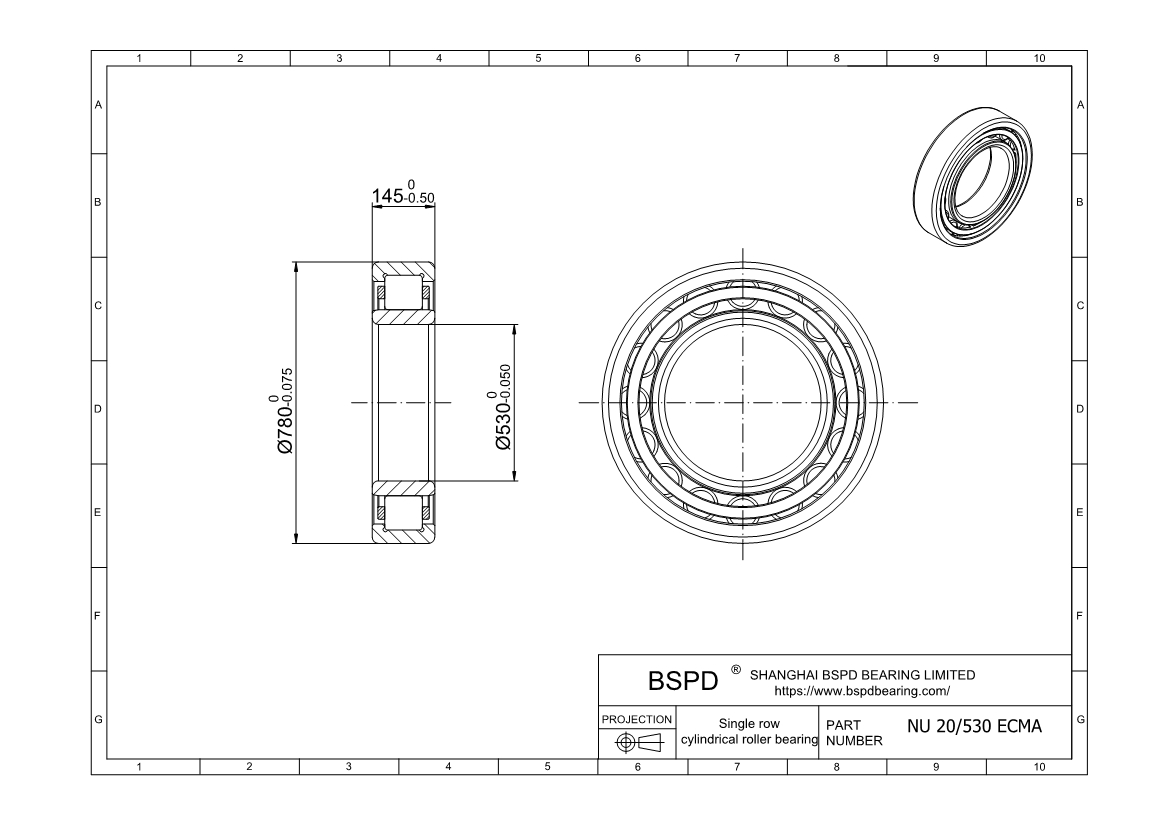

NU 20/530 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 530 mm； Outer Diameter: 780 mm； Width (Thickness): 145 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 20/530 ECMA |
| Bore diameter | 530 mm |
| Outside diameter | 780 mm |
| Width | 145 mm |
| Basic dynamic load rating | 3740 kN |
| Basic static load rating | 7350 kN |
| Fatigue load limit | 550 kN |
| Reference speed | 670 r/min |
| Limiting speed | 1000 r/min |
| Mass | 253 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 704 mm |
| Raceway diameter | 591 mm |
Print PDF
Request a 3D CAD Model
