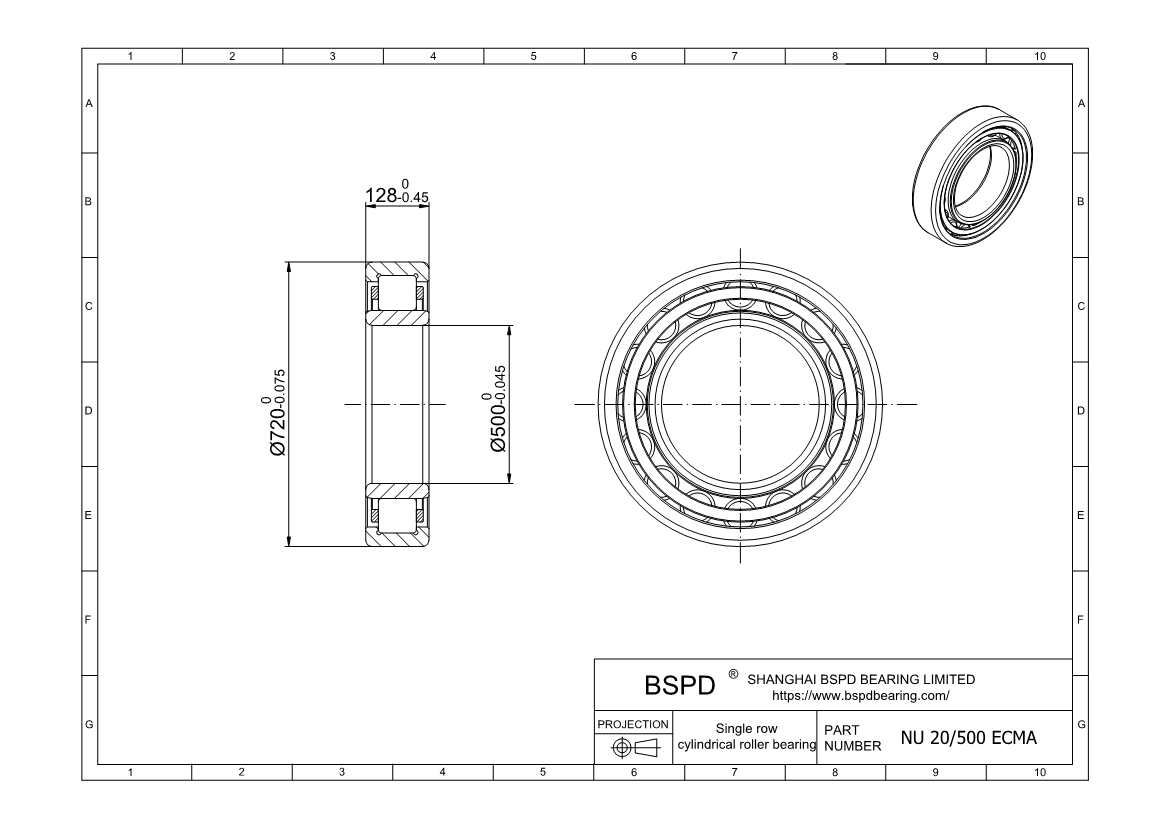

NU 20/500 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 500 mm； Outer Diameter: 720 mm； Width (Thickness): 128 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 20/500 ECMA |
| Bore diameter | 500 mm |
| Outside diameter | 720 mm |
| Width | 128 mm |
| Basic dynamic load rating | 2920 kN |
| Basic static load rating | 5850 kN |
| Fatigue load limit | 440 kN |
| Reference speed | 750 r/min |
| Limiting speed | 1100 r/min |
| Mass | 180 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 649 mm |
| Raceway diameter | 553 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 20/500 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
