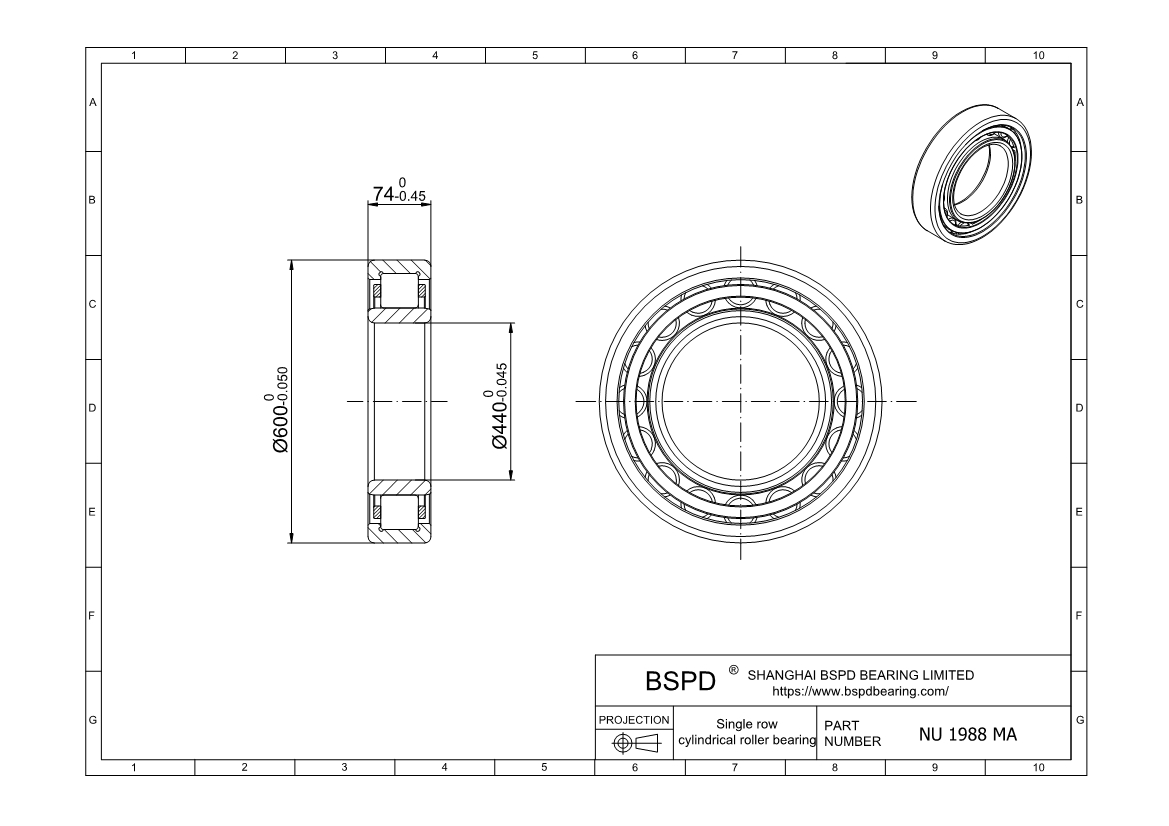

NU 1988 MA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 440 mm； Outer Diameter: 600 mm； Width (Thickness): 74 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 1988 MA |
| Bore diameter | 440 mm |
| Outside diameter | 600 mm |
| Width | 74 mm |
| Basic dynamic load rating | 1060 kN |
| Basic static load rating | 2000 kN |
| Fatigue load limit | 170 kN |
| Reference speed | 1100 r/min |
| Limiting speed | 1400 r/min |
| Mass | 53 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 544 mm |
| Raceway diameter | 482 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 1988 MA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
