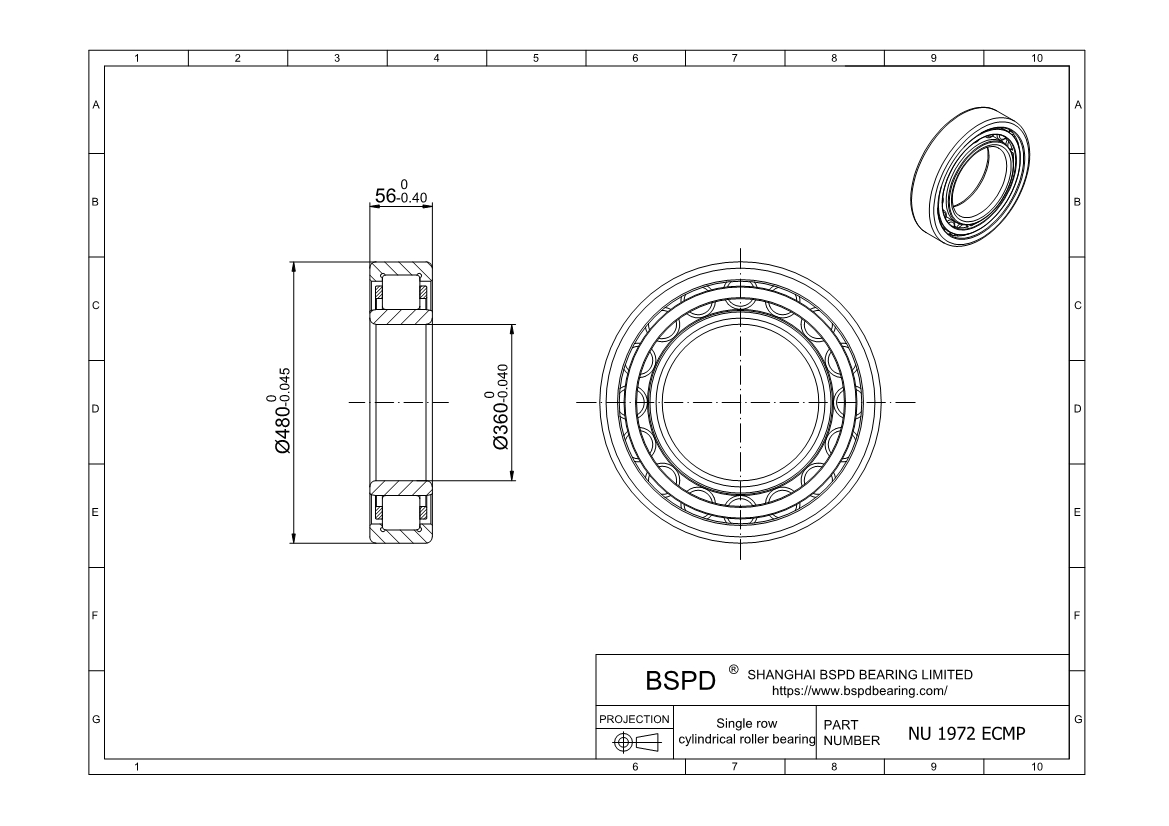

NU 1972 ECMP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 480 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 1972 ECMP |
| Bore diameter | 360 mm |
| Outside diameter | 480 mm |
| Width | 56 mm |
| Basic dynamic load rating | 781 kN |
| Basic static load rating | 1460 kN |
| Fatigue load limit | 129 kN |
| Reference speed | 1400 r/min |
| Limiting speed | 2000 r/min |
| Mass | 29 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 438 mm |
| Raceway diameter | 387.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 1972 ECMP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
