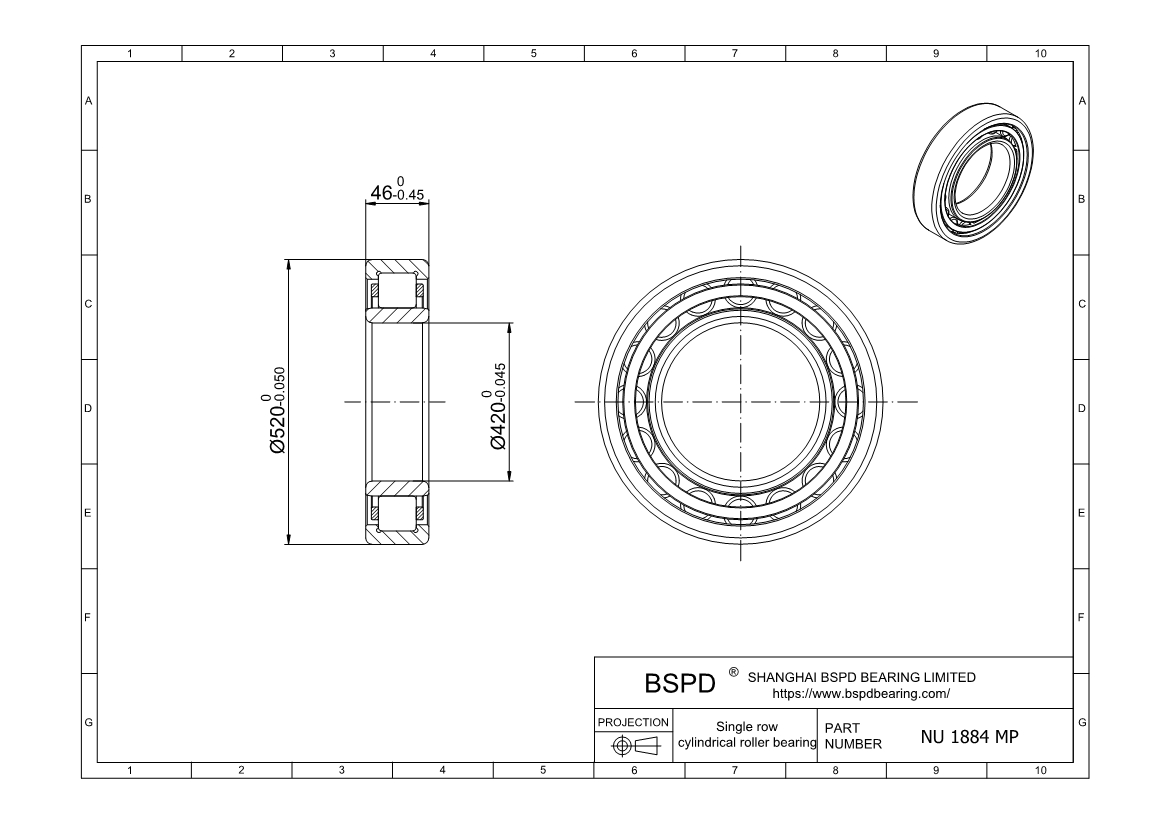

NU 1884 MP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 420 mm； Outer Diameter: 520 mm； Width (Thickness): 46 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 1884 MP |
| Bore diameter | 420 mm |
| Outside diameter | 520 mm |
| Width | 46 mm |
| Basic dynamic load rating | 572 kN |
| Basic static load rating | 1200 kN |
| Fatigue load limit | 102 kN |
| Reference speed | 1200 r/min |
| Limiting speed | 1800 r/min |
| Mass | 22 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 488 mm |
| Raceway diameter | 447 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 1884 MP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
