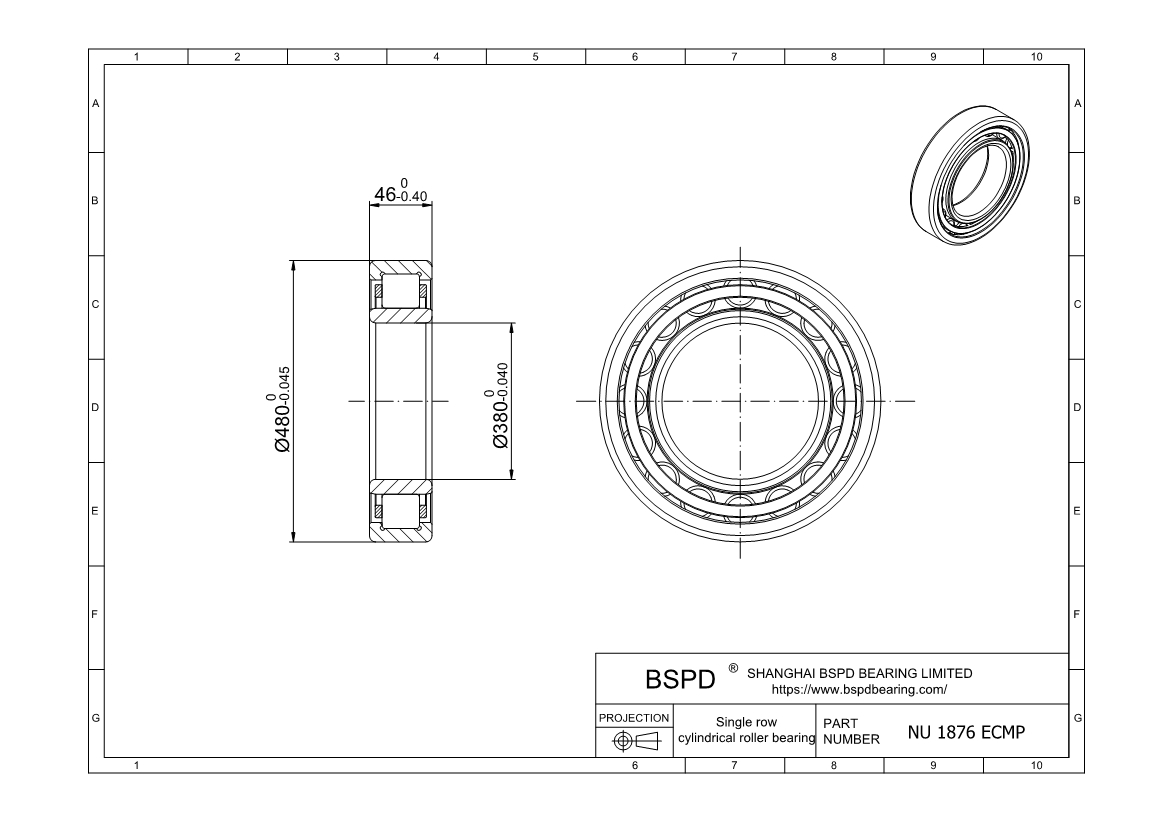

NU 1876 ECMP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 380 mm； Outer Diameter: 480 mm； Width (Thickness): 46 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 1876 ECMP |
| Bore diameter | 380 mm |
| Outside diameter | 480 mm |
| Width | 46 mm |
| Basic dynamic load rating | 561 kN |
| Basic static load rating | 1120 kN |
| Fatigue load limit | 98 kN |
| Reference speed | 1300 r/min |
| Limiting speed | 2000 r/min |
| Mass | 20 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 449 mm |
| Raceway diameter | 406 mm |
Print PDF
Request a 3D CAD Model
